Tomahawk Tarp Motor

$184.99 USD

Product details

Vendor Tarping Systems, Inc.
SKU T-TOMAHAWK
Type Direct Drive
Gear Ratio 60:1
Voltage 12V
Braking Inherent
Warranty 1 Year Standard

In stock

Usually ships within 24-72 hours

Do you have any questions about this product?

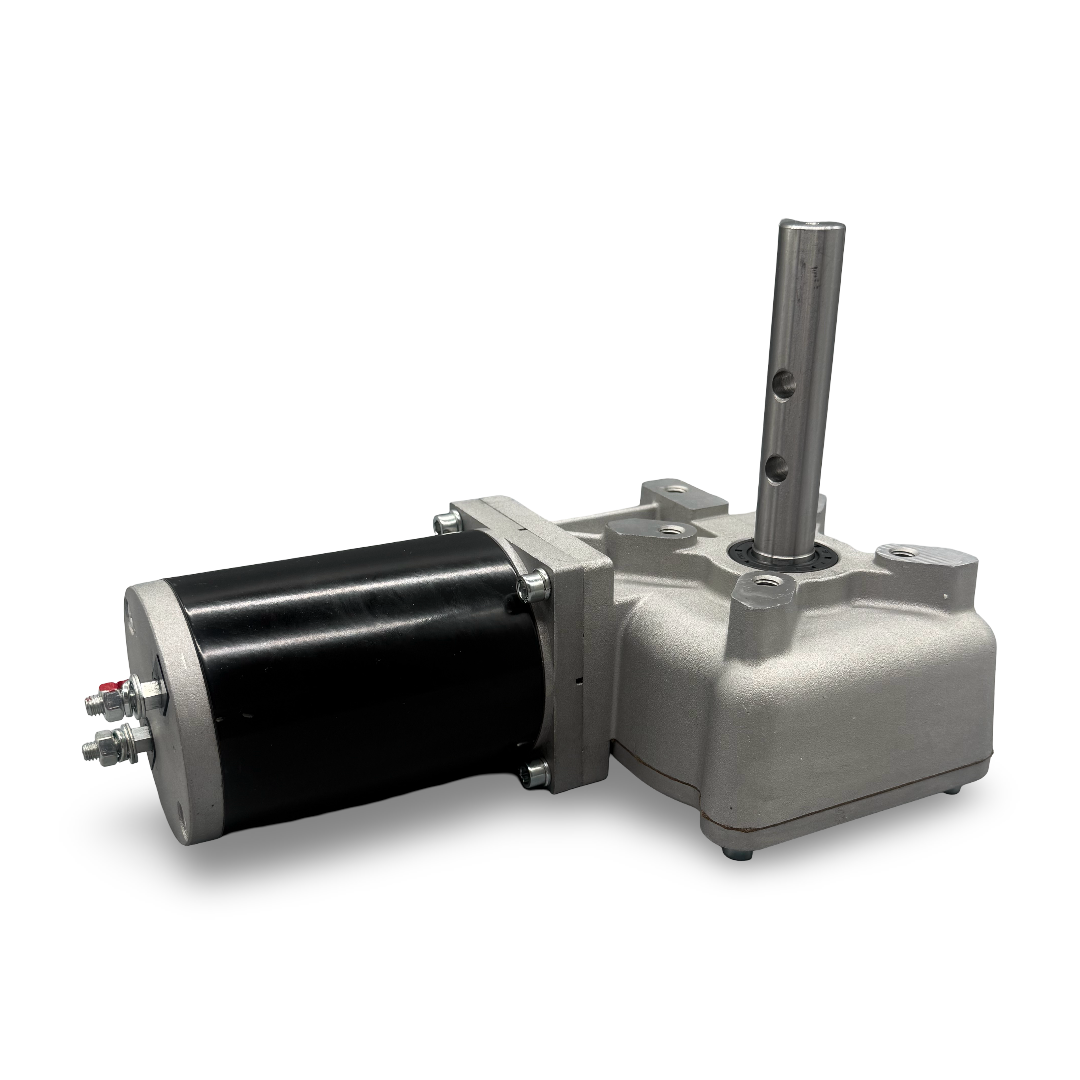

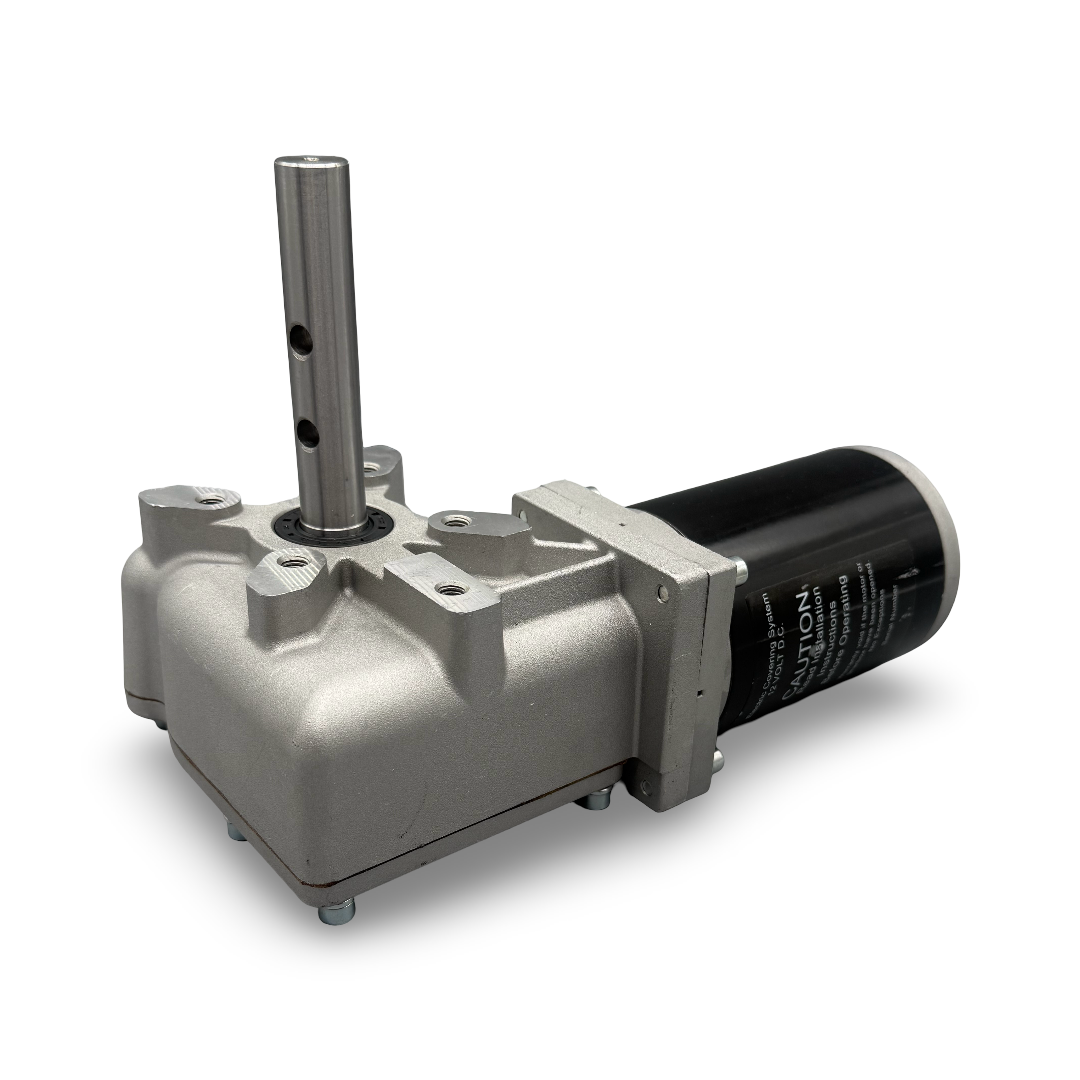

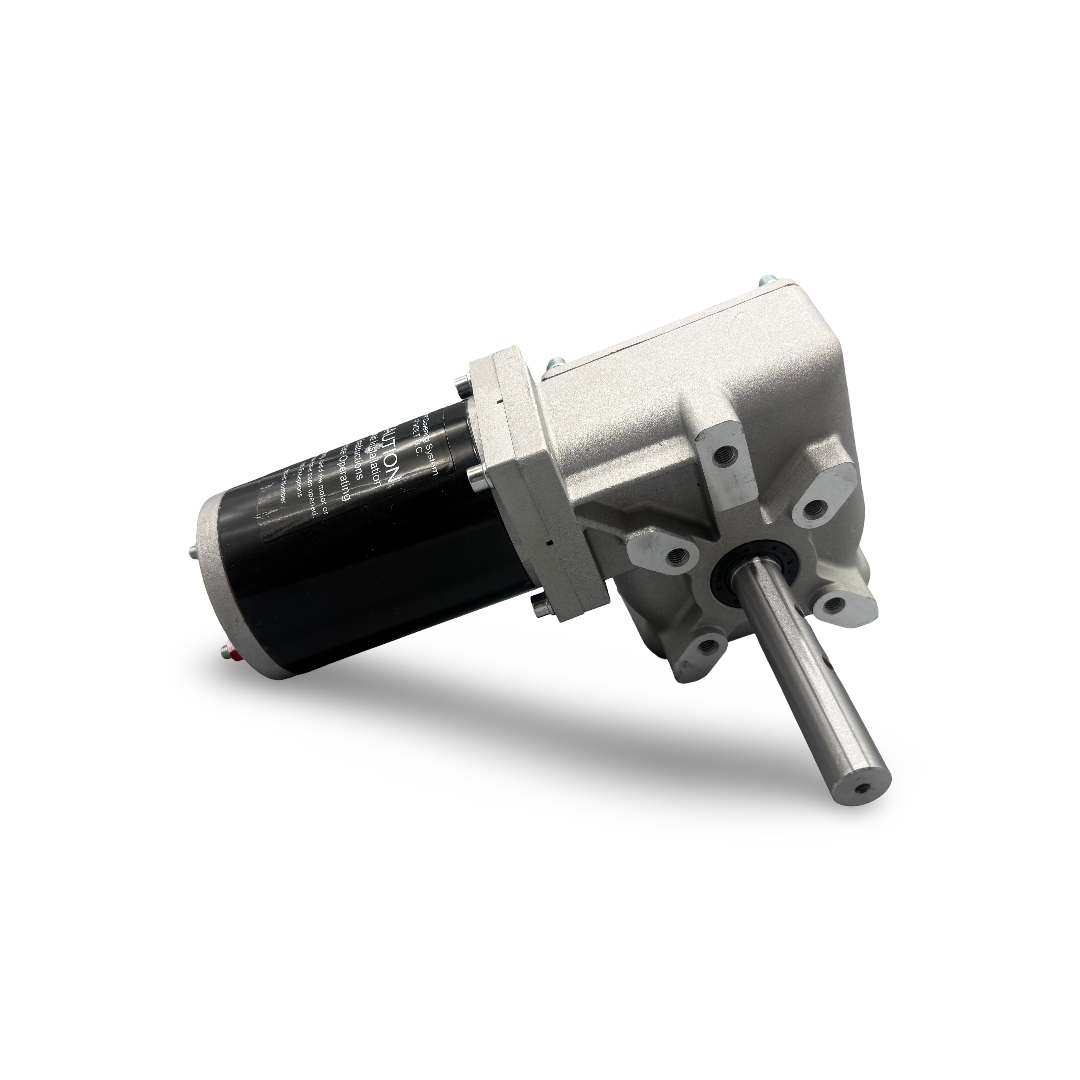

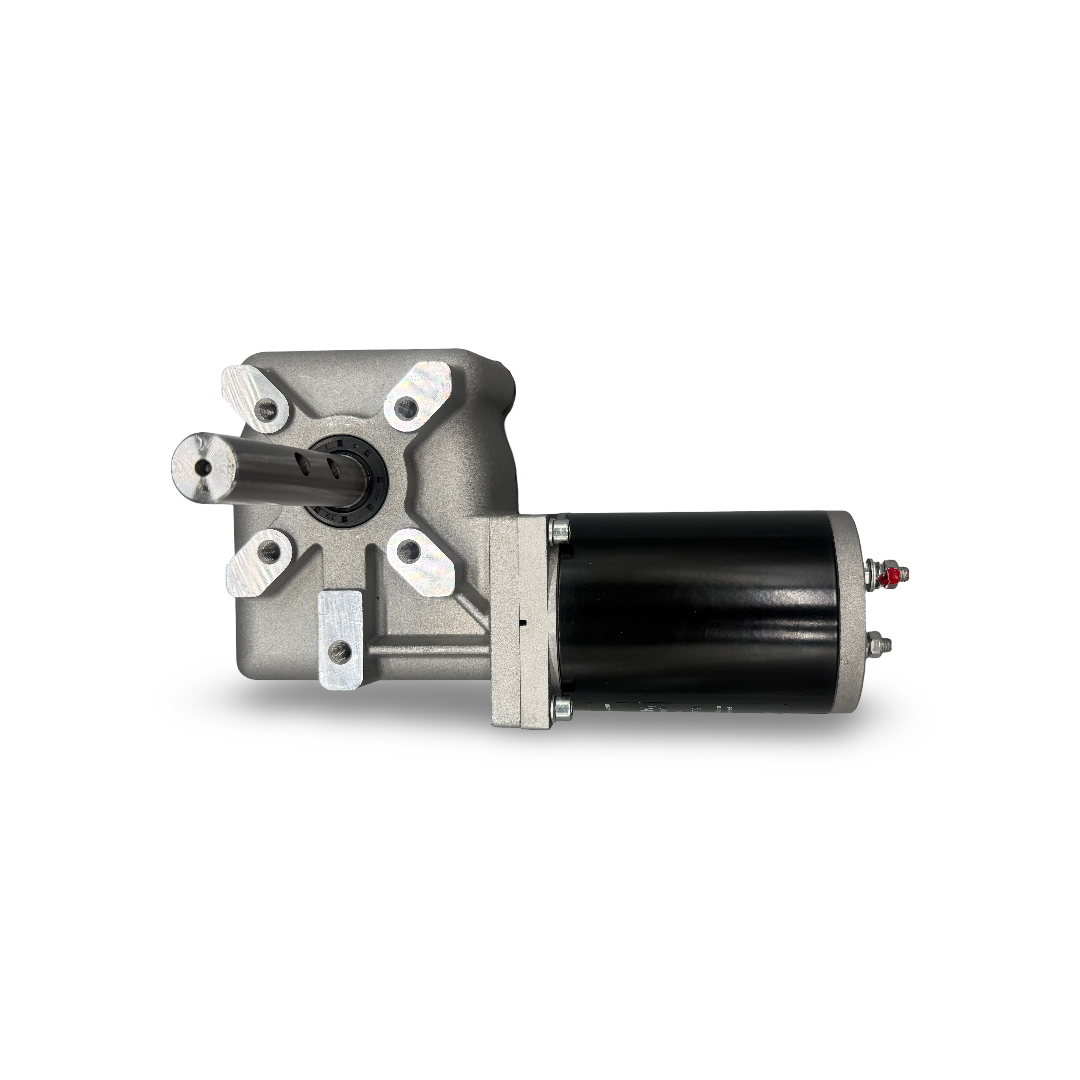

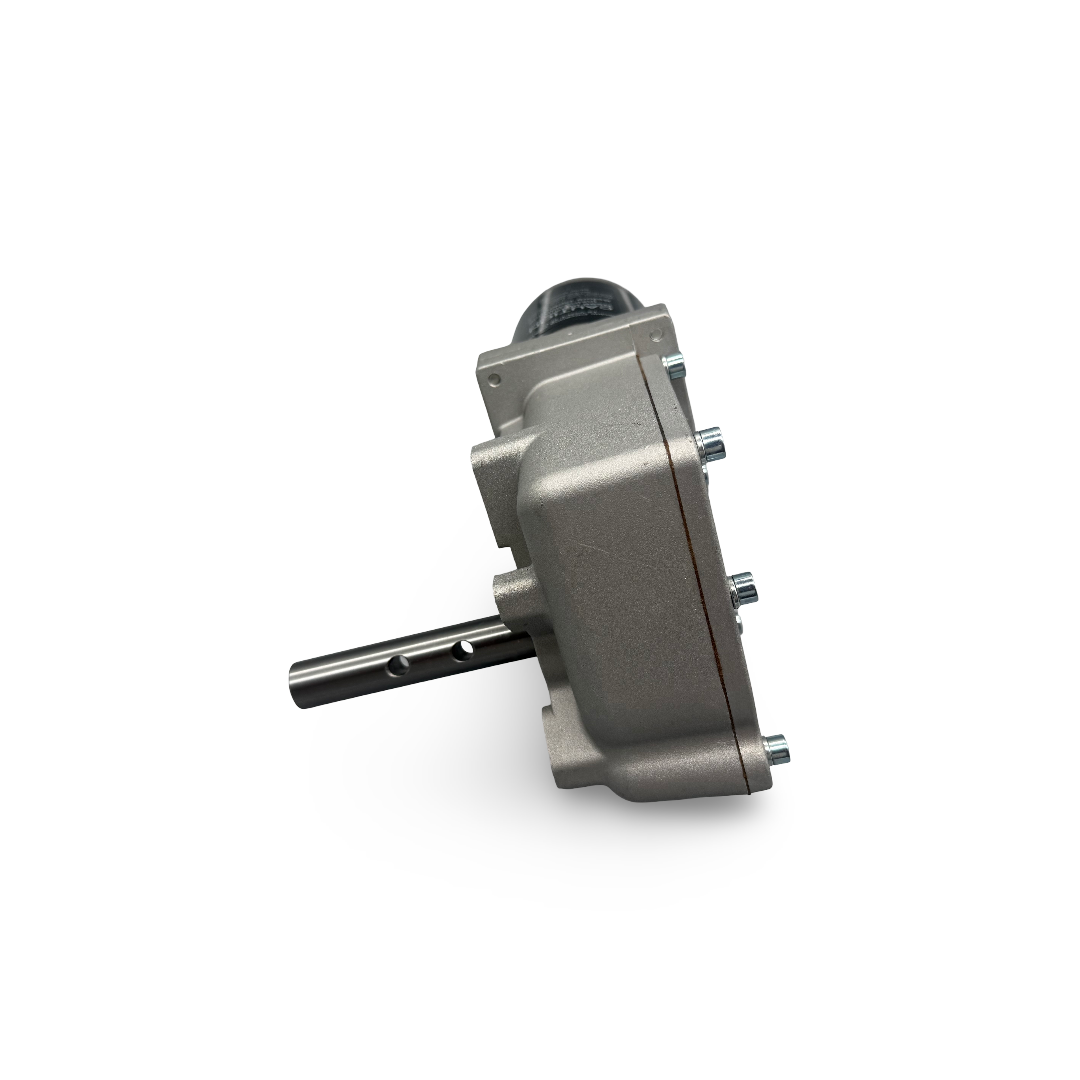

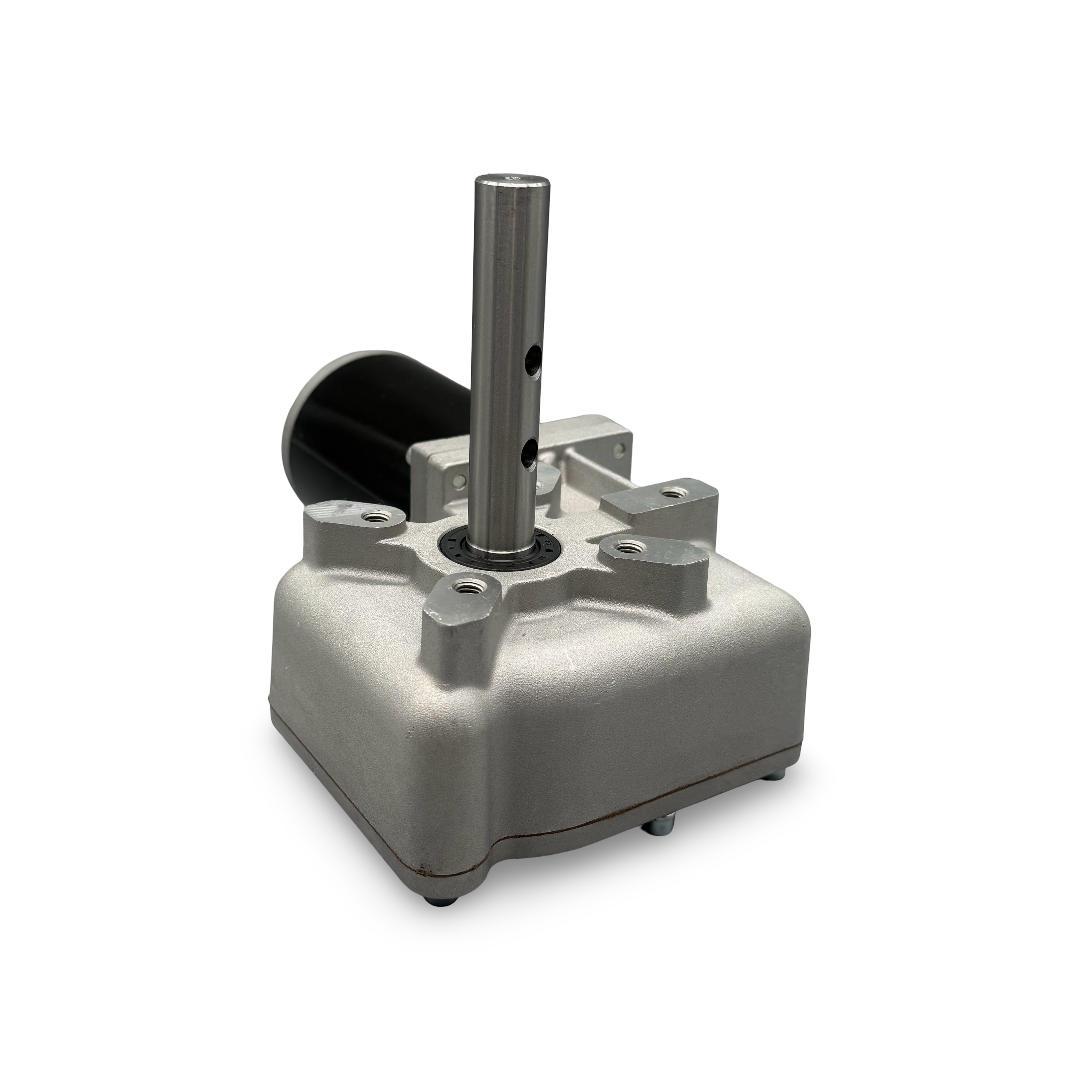

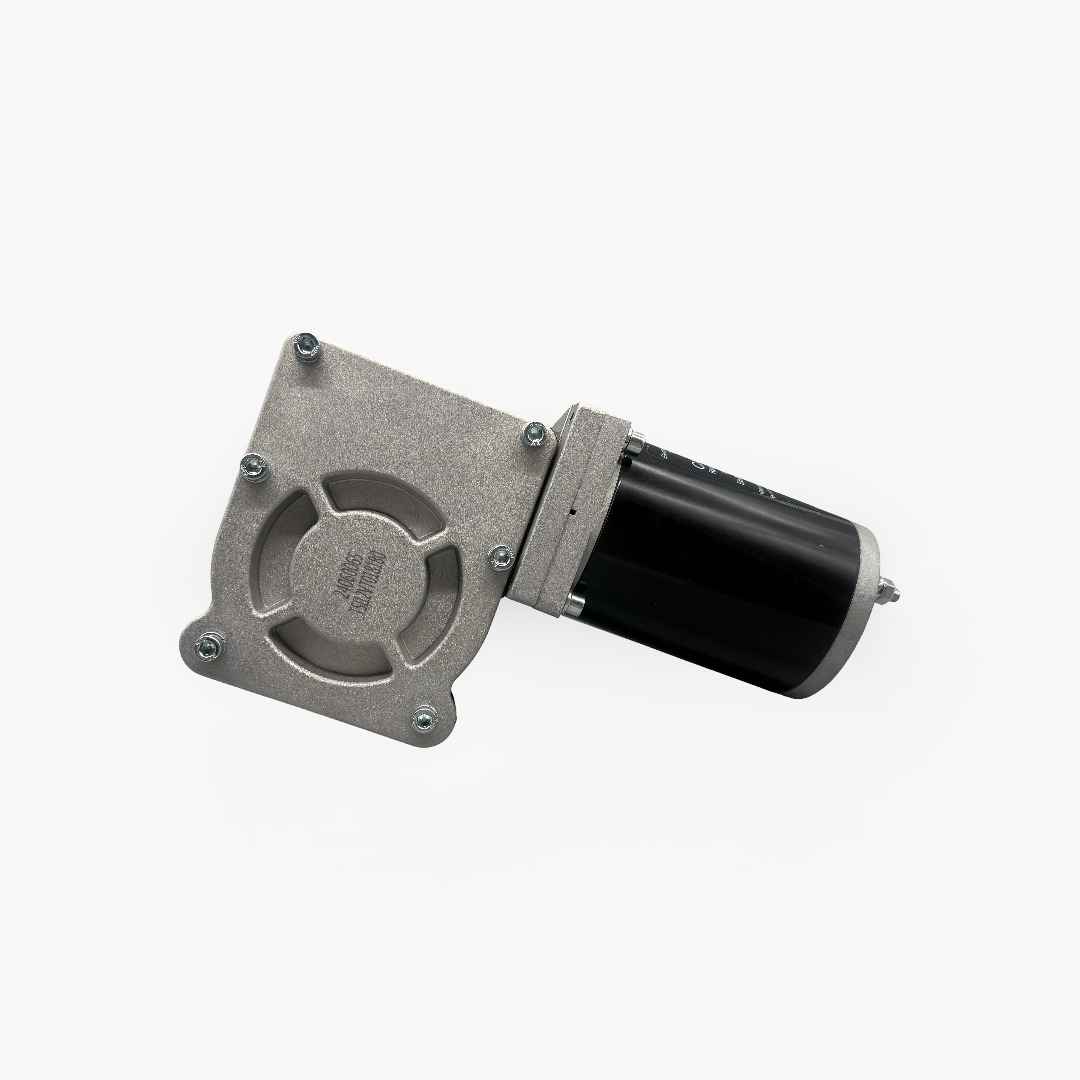

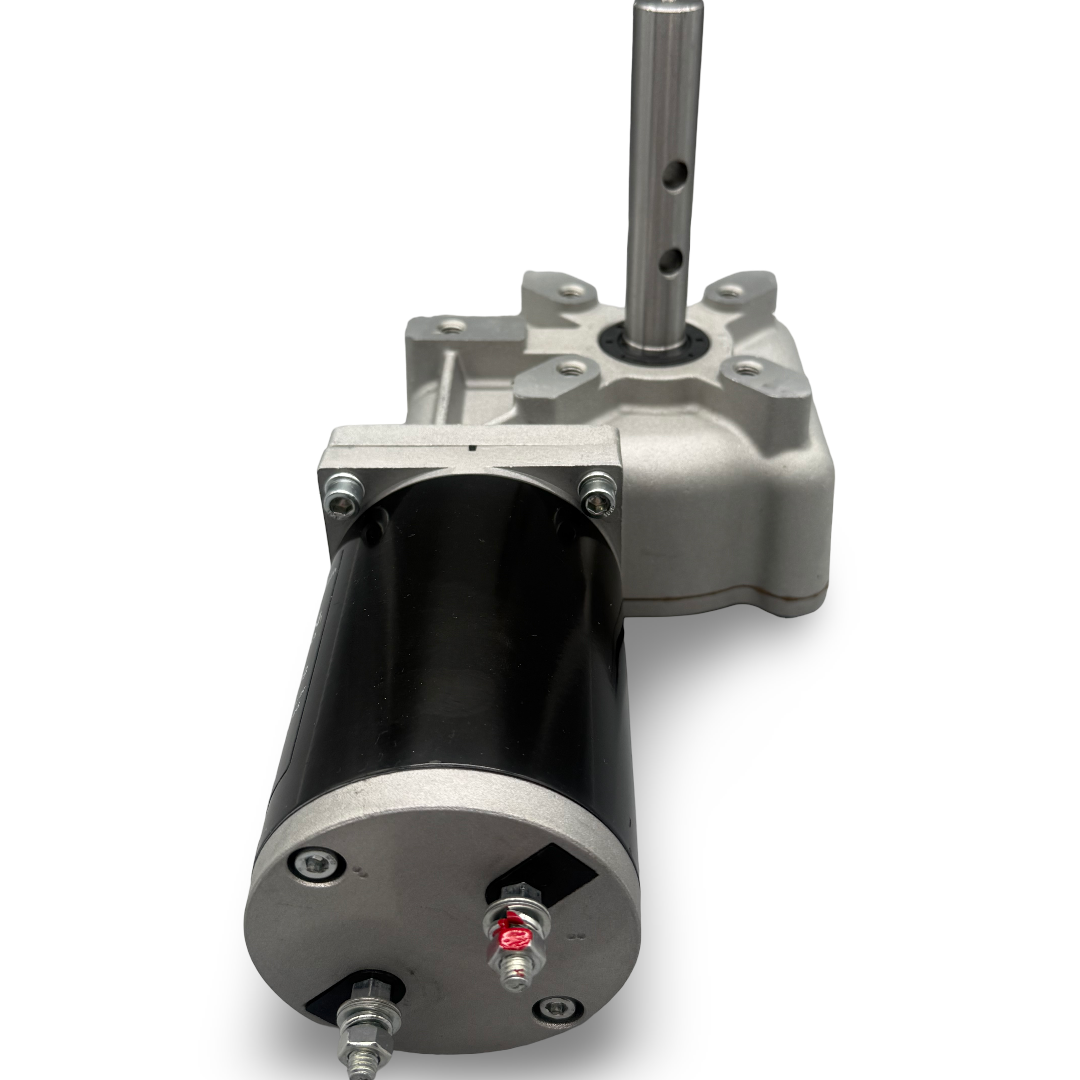

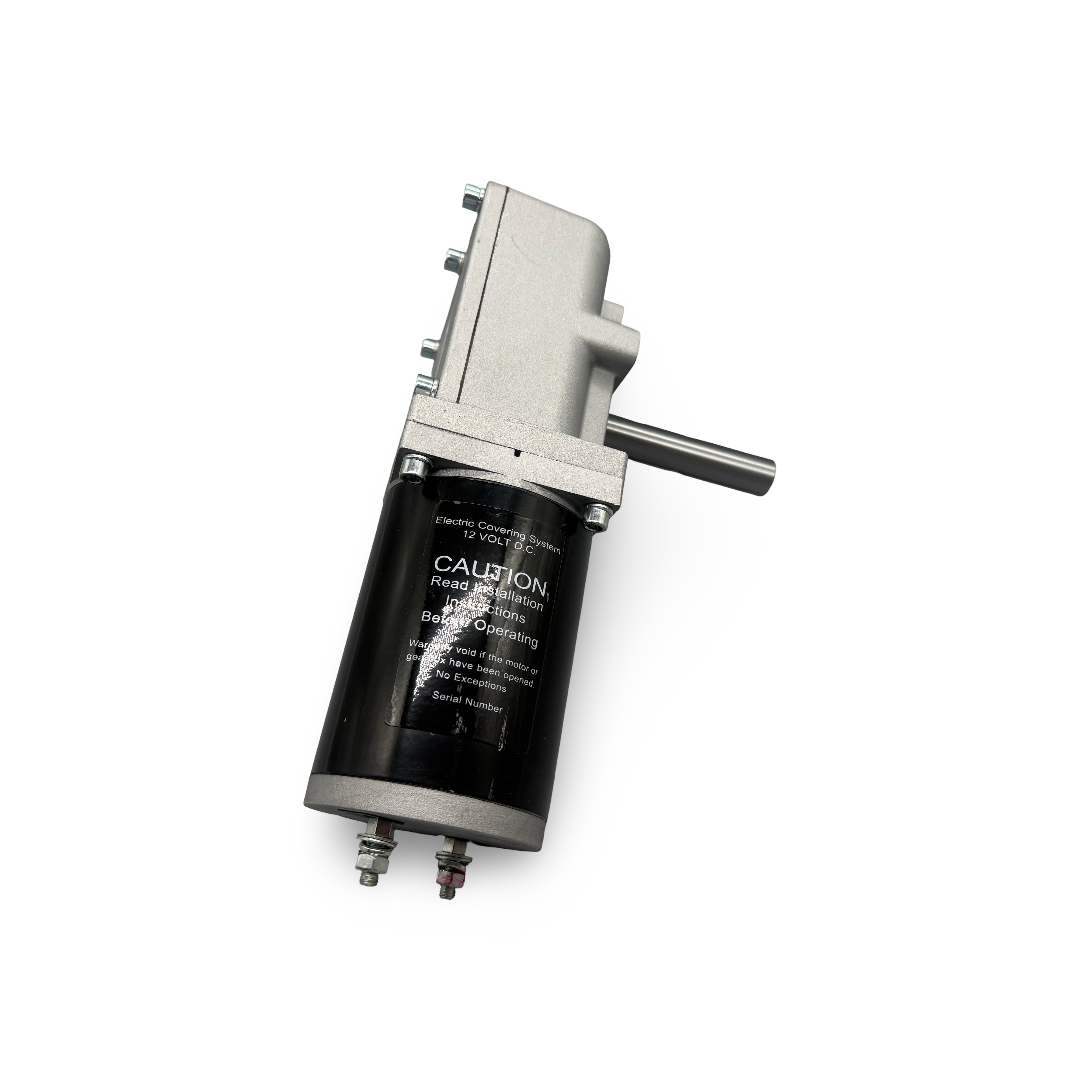

Get your electric tarp system back in service with the Tomahawk Tarp Motor, a 12V direct-drive replacement motor with 60:1 gearing. Designed for compatible dump truck and trailer tarp systems on bodies up to 28 feet long, the Tomahawk features a 3/4-inch output shaft and a five-hole mounting pattern.

Whether you’re replacing a worn motor or repairing your existing system, compare the shaft dimensions, mounting pattern, and electrical requirements to confirm the right fit.

Electric Tarp Motor Specifications

Type: Direct drive
Voltage: 12V
Gear ratio: 60:1
Power: 600W
Output shaft: 3/4" diameter × 3-3/4" long
Shaft holes: Two 5/16" through-holes
Maximum torque: 44 Nm / 32.4 lb-ft
Current draw at rated torque: 40 amps
Speed: 90–100 RPM
Gearing: Worm to wheel
Braking: Inherent
Dimensions: 12" L × 6.5" W × 4" H

Included Components

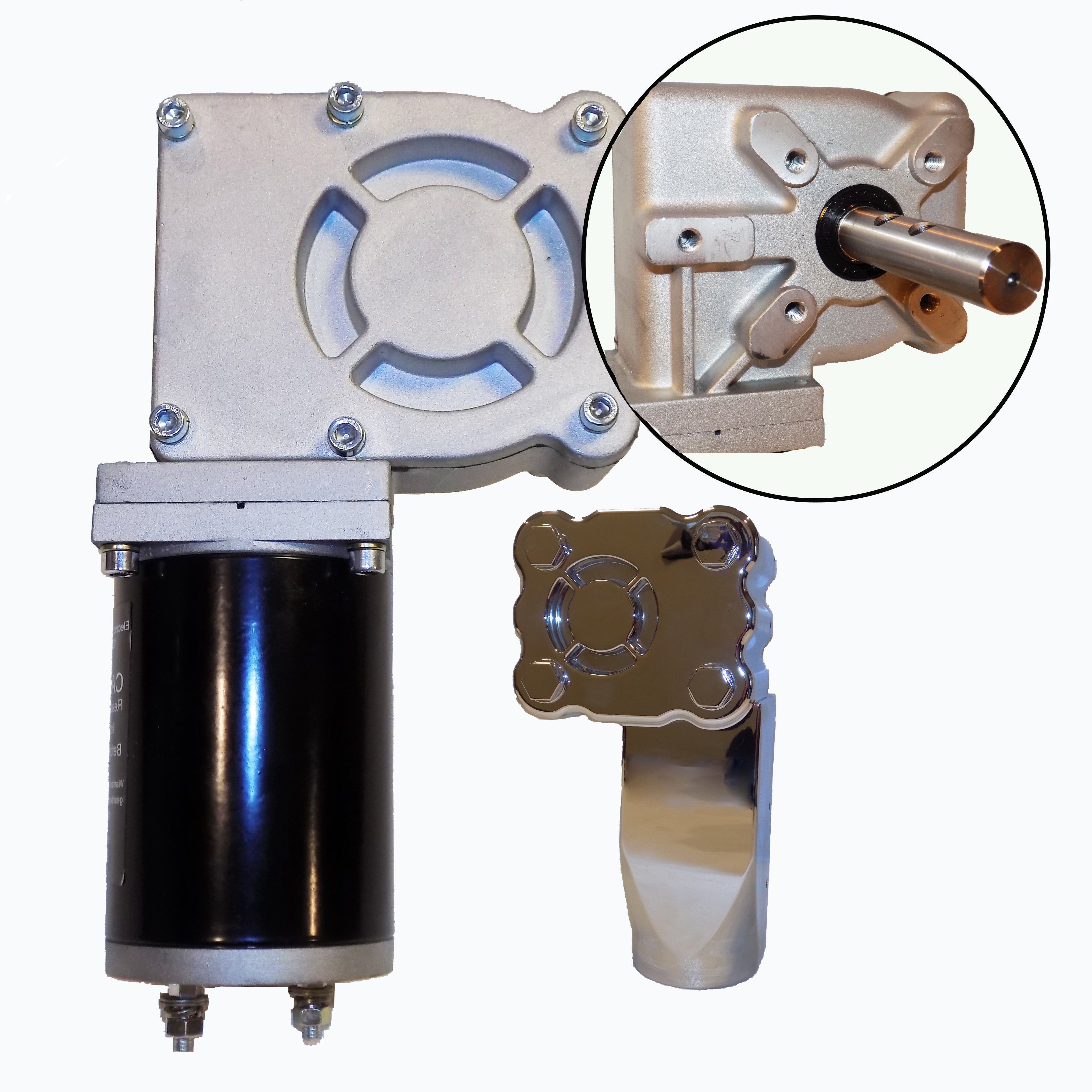

Plastic chrome motor cover, three M8 × 16mm socket-head cap screws, five M8 × 16mm hex-head screws, and three rubber washers.

Replacement References

Donovan 61G, Mountain Tarp K0170S, Aero 0755-623474, and US Tarp 13732. Confirm mounting, shaft, and system requirements before ordering.

Installation Considerations

Keep the tarp roller aligned with the output shaft and securely support the motor. Inspect the existing wiring, connections, and controls before installation. Your current listing recommends 6 AWG wire; confirm suitability for the complete circuit and cable length.

We appreciate your business and are committed to providing you with exceptional service and timely delivery. Please review the shipping information below for your order.

Order Processing Time:

Orders are usually processed within 24-48 hours after the order has been placed.
Custom or special order items may take longer to process, typically 3-5 business days.

Shipping Methods:

Standard Shipping (3-7 business days)
Expedited Shipping (2-3 business days)
Express Shipping (1-2 business days)

Packaging:

Rest assured that all items will be securely and safely packaged to prevent any damage during transit. Fragile or high-value parts will be packaged with additional protective materials, such as foam padding.

Shipping Rates:

Shipping rates vary based on the size, weight, and destination of the package. You can view the estimated shipping costs for your order during the checkout process before placing your order.

Order Tracking:

Once your order has been shipped, you will receive an email with the tracking number and carrier information. You can also track your order status by logging into your account.

International Shipping:

We ship worldwide! Please note that international shipping rates and delivery times may vary based on destination. Customers are responsible for any customs fees, import taxes, or additional charges that may apply.

Perfect 👌

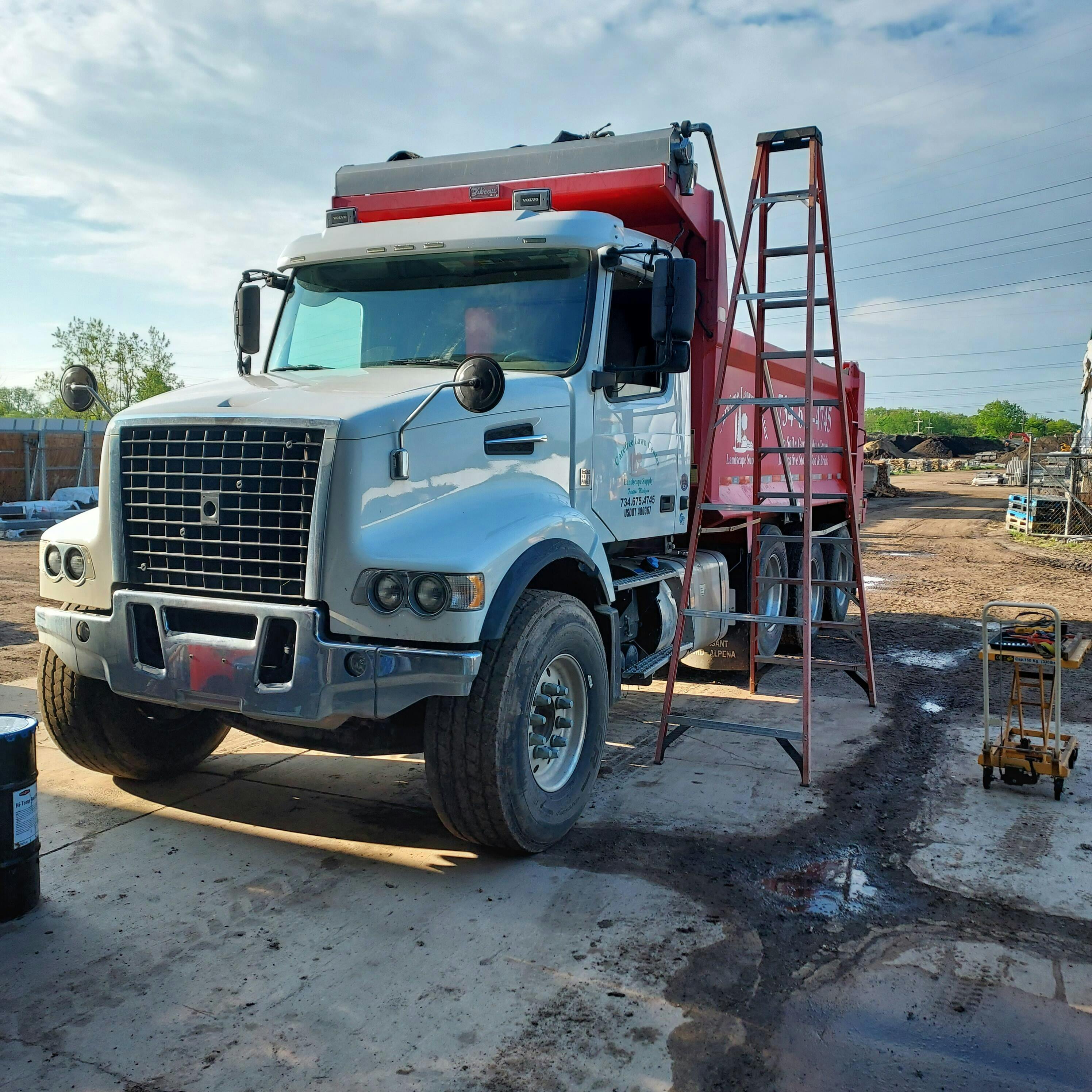

Third unit Ivan stalled on our Fleet. The first 2 have been out for about 3 years. 0 problems perform perfectly. These are far superior to the ones I replaced. There's just no comparison and excellent product.
