Product details
- Manufacturer Pioneer Coverall
- Part Number PC-HR1500H
Do you have any questions about this product?

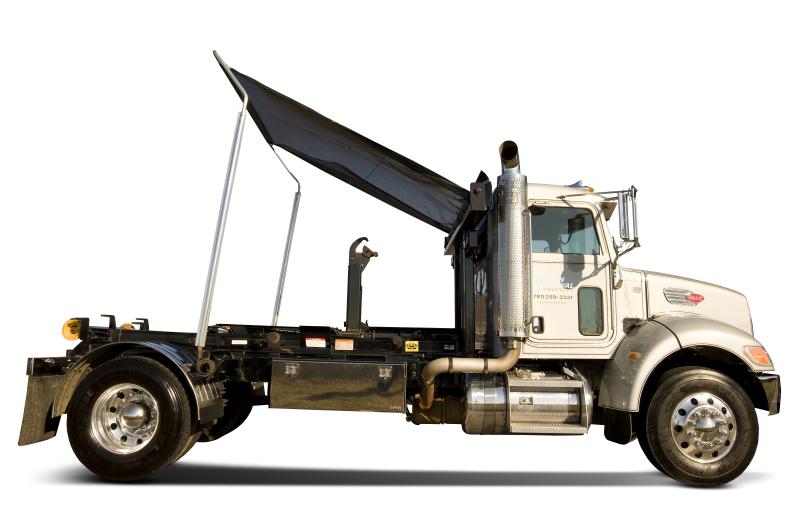

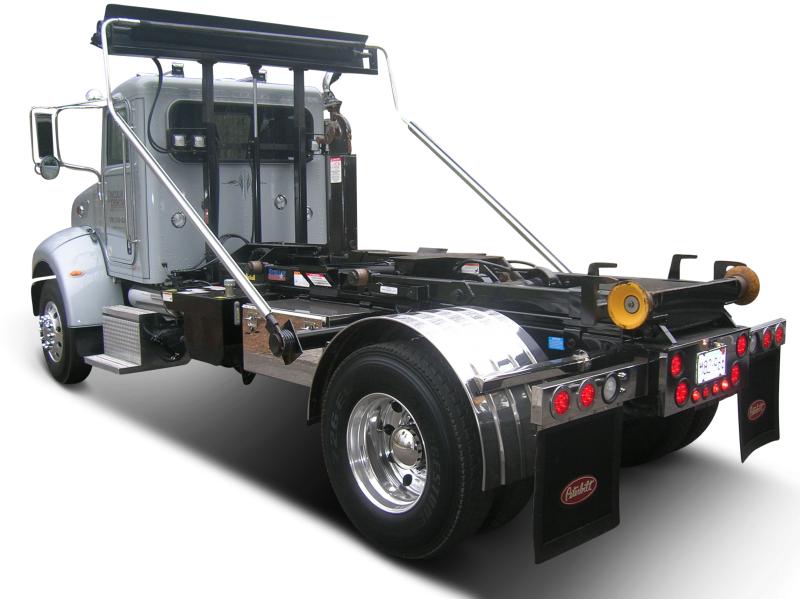

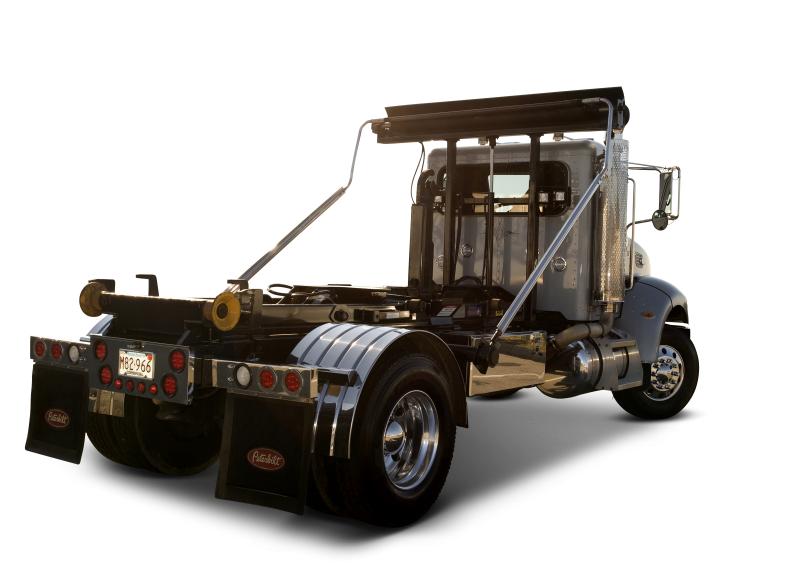

Pioneer HR1500H Tuff-Tarper with Hydraulic Gantry
The Tuff-Tarper systems are designed for single axle cable hoist and hooklift trucks. These systems can cover open-top, fixed height containers ranging from 8' to 16'. The HR1500HS is a hydraulic tarp system for single axle hook lift trucks which features:
- A Direct Drive Hydraulic Motor for quiet, smooth and steady movement
- An Adjustable Roller Assembly mounted on a Hydraulic Gantry with a Vertical range of 60" to 96"
- Uses your truck's pre-existing hydraulic system
- This unit comes with Reinforced STEEL Side Mounted Pivot Arms
- Heavy Duty Reverse Wound Torsion Springs assist pivot arm movement in deployment

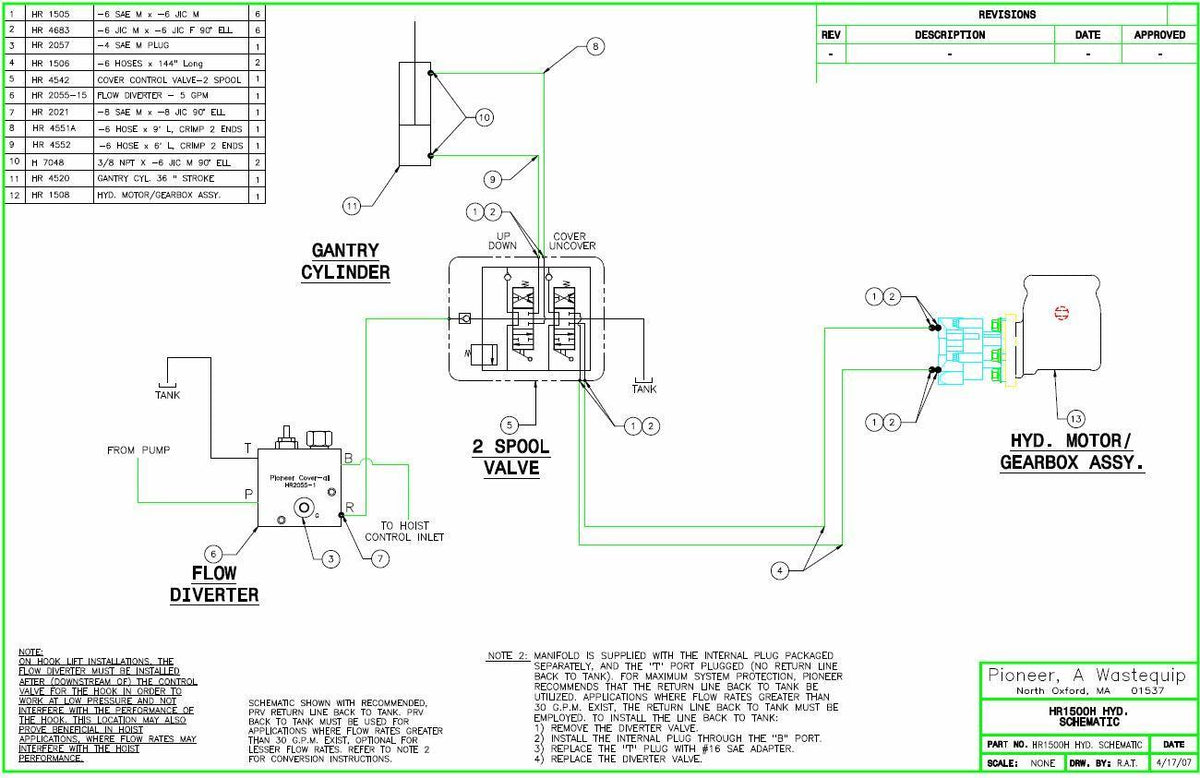

- For driver's safety, a flow diverter and control valve help to operate the roller at lower pressures
- Easy Installation
- Low maintenance
Comes with Heavy Duty Tarp
The Tuff-Tarper Advantage

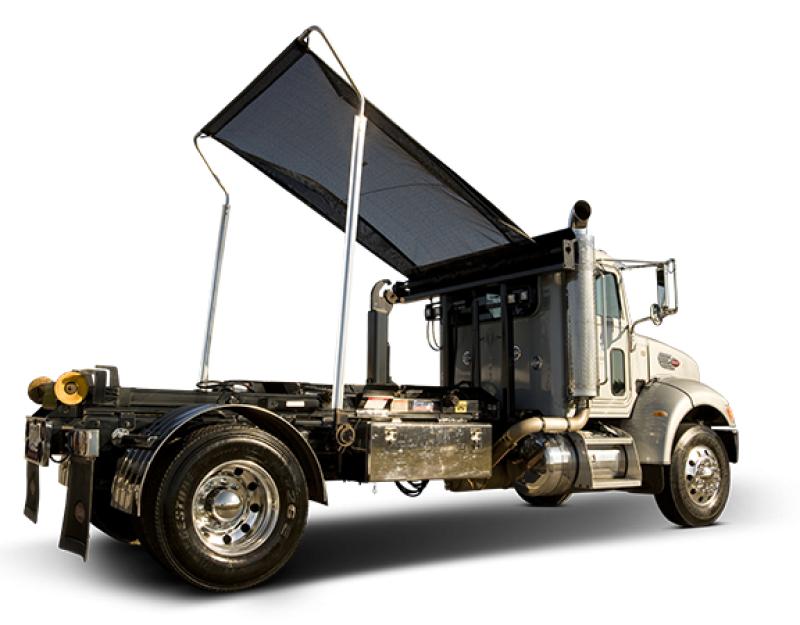

The HR1500HS uses your pre-existing hydraulic system and is powered by a right angle hydraulic direct-drive motor/gearbox combo. As the tarp is deployed, the hydraulic motor unwinds the cover from the roller while the torsion-spring powered pivot arms move to cover the load. These units come standard with a 9' wide expandable Heavy Duty Mesh Tarp.

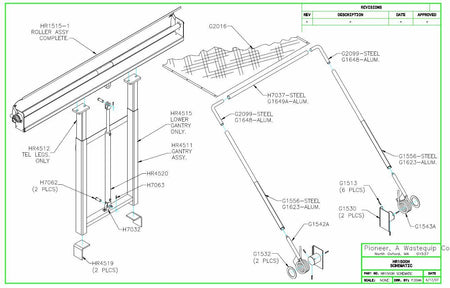

Parts Included:
- Roll Pin (5/16" x 1 1/2")
- Arm Mounting Bracket
- Retaining Ring (Side Mount)
- Left and Right Side Base Arm (Side Mount)
- Upper Arm 9' 6" (Steel)
- 2 Straight Bow Corners
- Cover Spring
- Rear Section 9' (Steel)
- 90° ELL
- Clevis Pin with Cotter

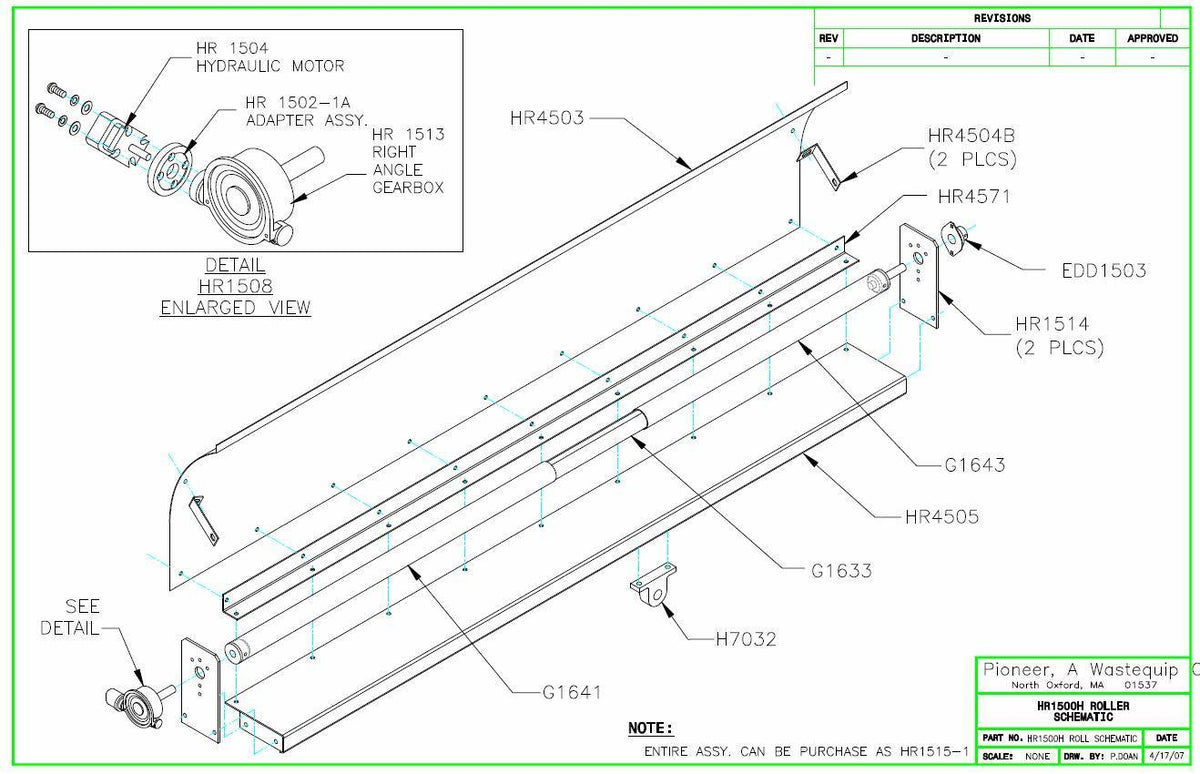

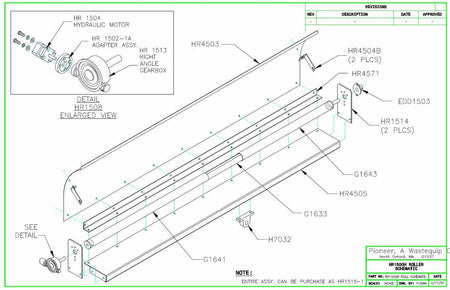

- Roller Assembly

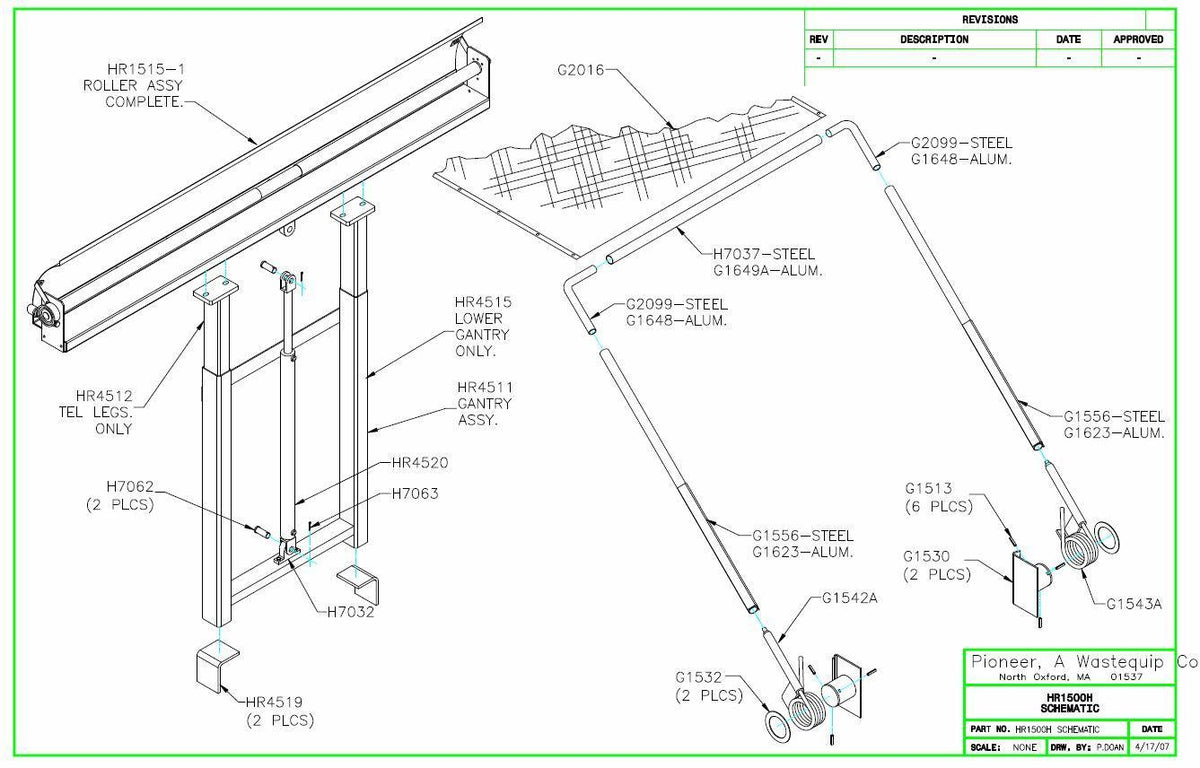

- Gantry Assembly
- -8 SAE M x -8 JIC F 90° ELL
- Flow Diverter at 5 GPM
- SAE M Plug
- Chassis Mounting Angle
- Gantry Cylinder 36" Lift
- Cover Control Valve ( 2 Spool)
- Hydraulic Hose (-6 x 9')
- Hydraulic Hose (-6 x 6')
- -6 SAE M x -6 JIC F 90° ELL
- -6 SAE M x -8 JIC M Straight Adapter and AN Adapter
