K-HR1000W/PP



The Pioneer HR1000 Hi-Roller Refuse Tarping System with Power Pack is a semi-automatic, "armless" tarping system with a hydraulic gantry that adjusts from 64" to 104". It is powered by a 12-Volt DC self-contained power pack. This system is designed for single-axle hook lift trucks and cable hoists covering open-top, fixed height containers ranging from 8' to 16'.

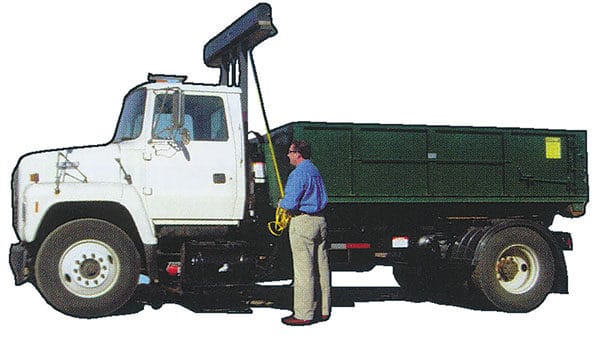

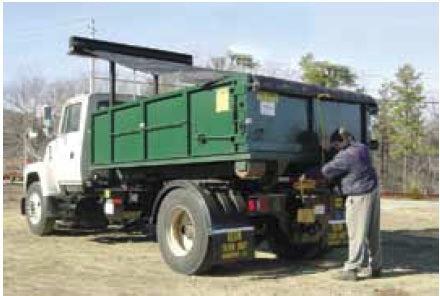

To use, simple raise the gantry above the container, flip the rope above the load, walk to the rear of the truck, and pull the tarp over the load. Tie the 9' wide expandable heavy-duty mesh tarp to the provided cleat.

The Tuff-Tarper Advantage

The HI-Roller is one of Pioneer's "Tuff-Tarper Systems", which are specifically designed for single-axle cable hoist and hooklift trucks. Tuff-Tarper Systems are available in semi-automatic, automatic, and hydraulic versions. Click here for details on the HR1000PTO, which is powered by your truck's hydraulic system instead of a power pack.

Parts Included:

  • Lock Ring
  • Wheel to Load Roller
  • Guide Washer
  • Collar
  • Steel Housing & Housing Assembly

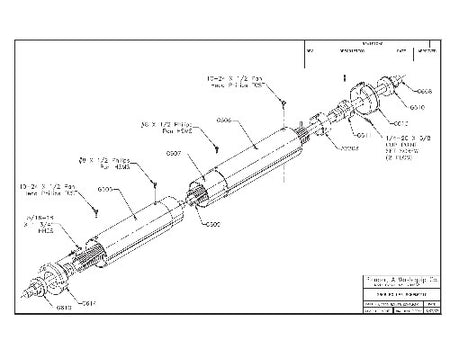

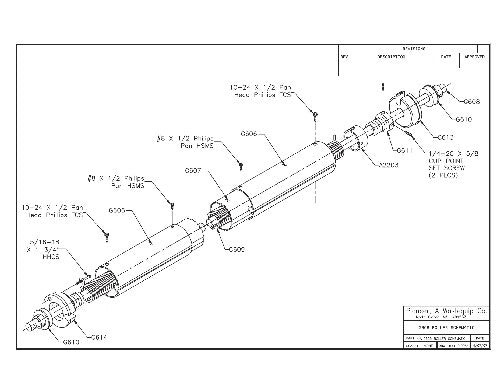

  • Complete Roller Assembly
  • Roll Tube
  • Center Section Roll
  • Shaft, Spring, Bearing, Cone, and Spacer
  • Roller
  • Pull Rope with Snap Hook
  • Eye Bolt
  • Rear Section
  • Roll Mounting Angle
  • Clevis Eye Pad
  • 90° ELL
  • 40" Cylinder
  • Clevis Pin with Cotter
  • Roll Base

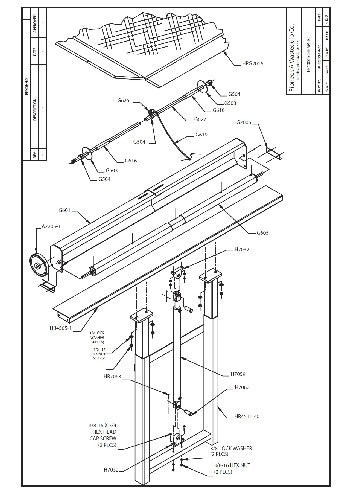

  • Gantry Assembly
  • Telescopic Gantry Let (40")
  • Lower Gantry 40" Cylinder
  • 1/4 NPT x -6 JIC 90° ELL
  • Hydraulic Hose (-4 x 9', crimped on two ends)
  • Hydraulic Hose (-4 x 6', crimped on two ends)
  • Rope Hook

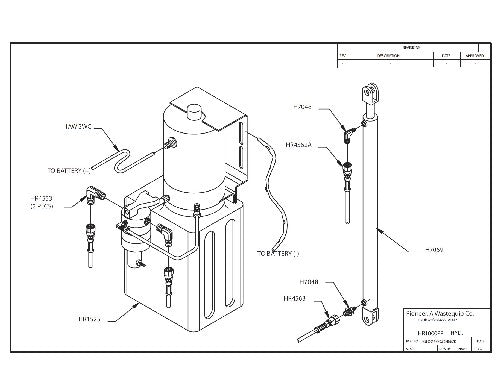

  • Hydraulic Power Pack

Pioneer HR1000 Hi Roller Refuse Tarping System w/ Power Pack

  • Sale
  • Regular price $2,400.00
Shipping calculated at checkout.
