K-EDD1508

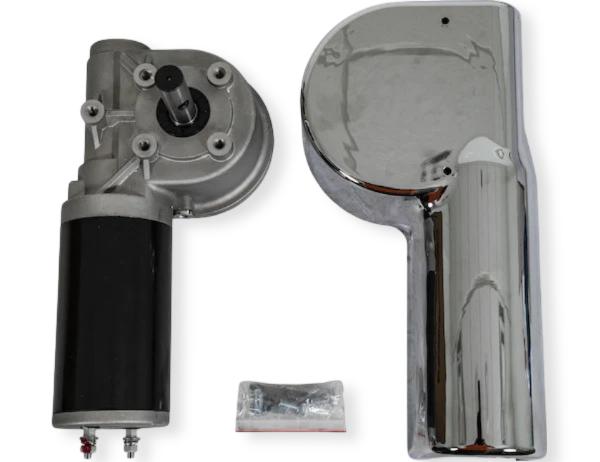

Includes Motor, Gearbox, Chrome Cover, and Bolt Bag for a Motor Mount.

12 Volt, Right Angle, Direct-Drive Motor for Pioneer Systems is the replacement for older Pioneer EDD1508 systems, Pioneer HR1500E systems, and Pioneer EDD1500D dump truck systems. Ideal for bodies up to 19'.


Specifications:

  • Voltage: 12VDC
  • Gear Ratio: 60:1
  • Power: 1.1 HP - Direct Drive
  • No Load Speed: 90RPM +/-10% Clockwise
  • Nominal Speed: 79RPM +/-10%
  • Nominal Torque: 17.2Nm
  • Duty Cycle: 20S ON / 40S OFF
  • Shaft Size: 3/4"
  • 3-Year Warranty Included (Opening, separating, or otherwise tampering with motor and gearbox will void the warranty.)

Pioneer Electric Motor (20-15-0028)

  • Sale
  • Regular price $541.00
Shipping calculated at checkout.
