Patriot Aluminum Replacement Tarp Arms, Springs, Pins, Bumpers, and all necessary hardware.

EZ-Cover Manual Tarp System

In stock

Usually ships within 24-72 hours

$599.00 USD

Optional Mounting Brackets

No Yes

Optional Fender Mount Pivot Plates

No Yes

Product details

Manufacturer Tarping Systems, Inc.
Part Number T-PHNTM-4SP93
Type Front-to-Back
Coverage Up to 23' Trailer

Do you have any questions about this product?

Ask an expert!

Dump Trailer Tarp Systems are a worthy investment for both dump trucks and dump trailers. Manual tarp systems simplify the tarping process, saving you time and money. Please note: This model is designed for dump trailers less than 24' long. This is a complete bolt-on kit (no welding required).

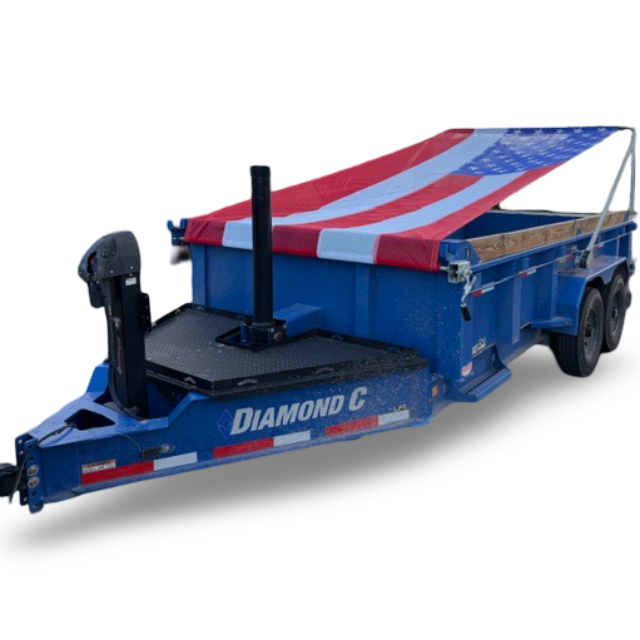

With a manual dump trailer tarp system, you can cover and uncover a load in seconds, with the crank of a handle, and from the comfort and safety of the ground or your cab! This tarp system features heavy-duty rustproof aluminum tarp arms that mount to each side of your dump trailer, with a cross tube connecting the arms over the dump box. Each side has springs that push the arms towards the rear of the dump box. The included direct-drive crank box turns the axle which spools up the tarp and pull the tarp arms back to the front of the dump trailer.

An auto tarp kit comes with everything you need for a quick and easy installation. Any of the tarp system hardware can be cut down to fit dump trailer lengths from 8' to 24', making it one of the most versatile and economical dump truck tarp systems on the market.

When manufacturing the optional fender mounted pivot plates for your trailer, it is crucial you account for your steak pockets / top rail above or around where the tarp system arms will be pivoting. This, along with a wider than normal top rail, can incur some extra fitment issues due to a less than ideal pivot tolerance. If you have any questions or are concerned due to fitment issues, please call prior to ordering. If your trailer has upright braces welded to the fender, please measure for your pivot point center prior to ordering. Some trailers will have their pivot point in the middle of a vertical upright. In these cases, a cut-out or custom pivot plate may need to be fabricated.

Don't forget a Mesh Dump Truck Tarp or a Vinyl Dump Truck Tarp!

Need this installed? Call us to schedule an install today!

Manual Tarp System Components

(1) Direct-Drive Crank Box
(1) Adjustable Aluminum Tarp Axle from 93"-110"
(1) Axle Bearing With Flange 3/4" Hole
(1) Stud Shaft
(2) 4 Spring Pivot Pin
(8) Spiral Torsion Springs
(4) Stainless Steel Bushings
(2) External Retaining Ring Clips
(2) 4 Spring Aluminum Lower Arms
(2) Aluminum Side Arm with 90° Corners
(1) Adjustable Aluminum Cross Tube
(2) Patriot Rubber Bumpers
(1) Patriot Aluminum Hardware Kit (Instructions Included)
(2) Optional Fender Mounted / Frame Mounted Pivot Plates

NOT INCLUDED: Tarp, Elbows, Wind Deflector, Housing.

Want to convert this kit to fully electric? Click here!

HOW TO MEASURE FOR A TARP

For tarp size, please measure inside to inside of where the tarp axle/crank box will be mounted, subtract 4" and that will be your width. For length, please measure from where the tarp axle will be to the tailgate, then add 2'.
