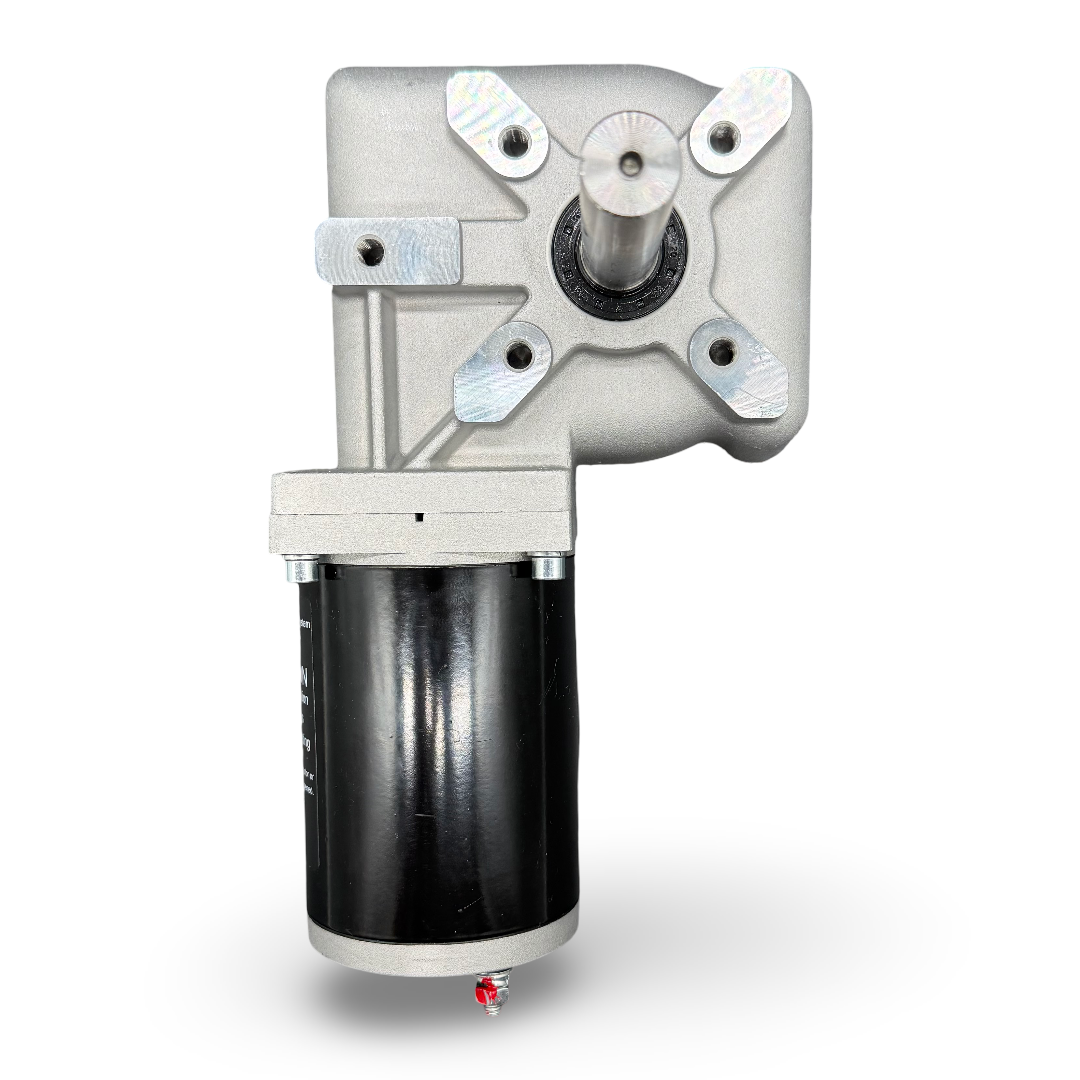

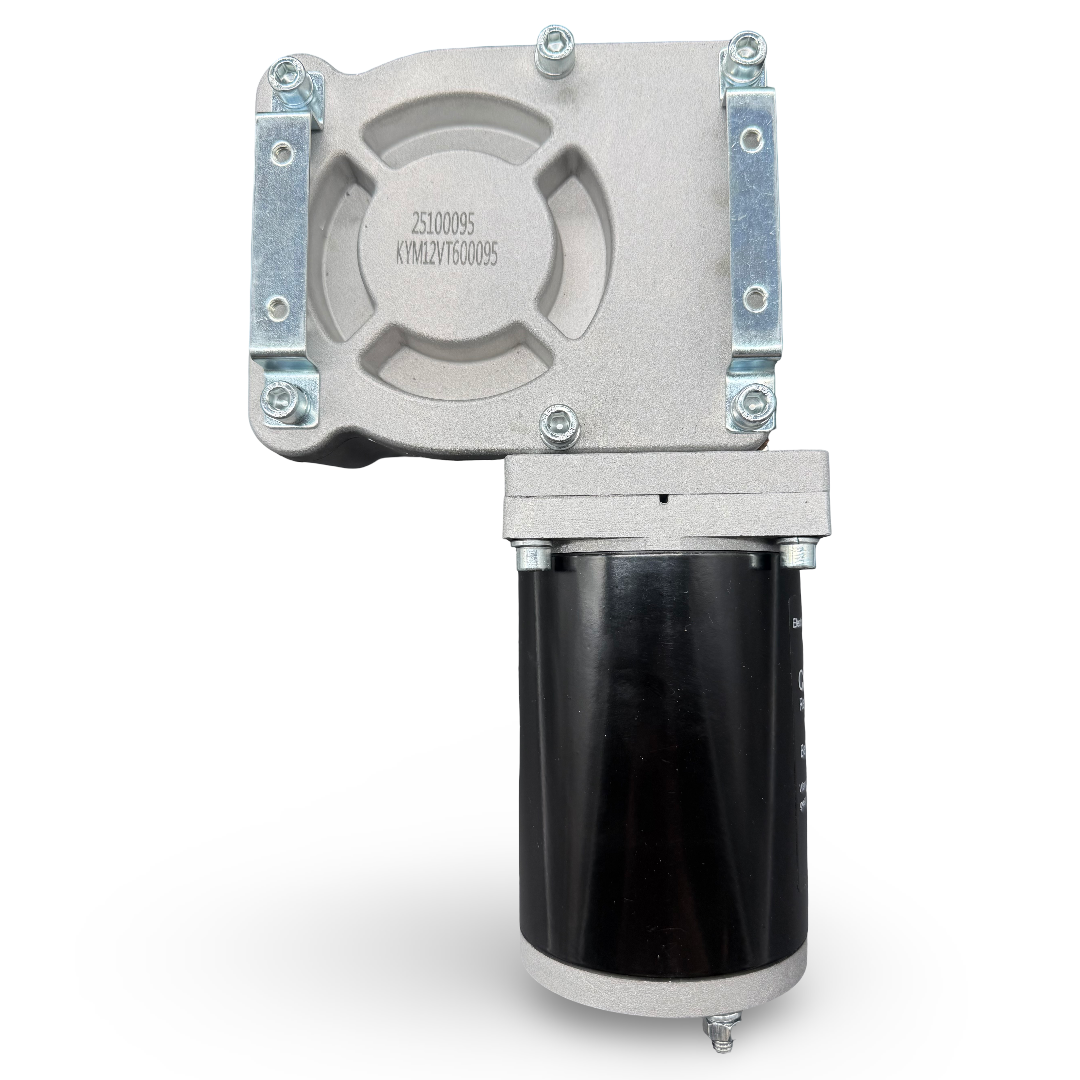

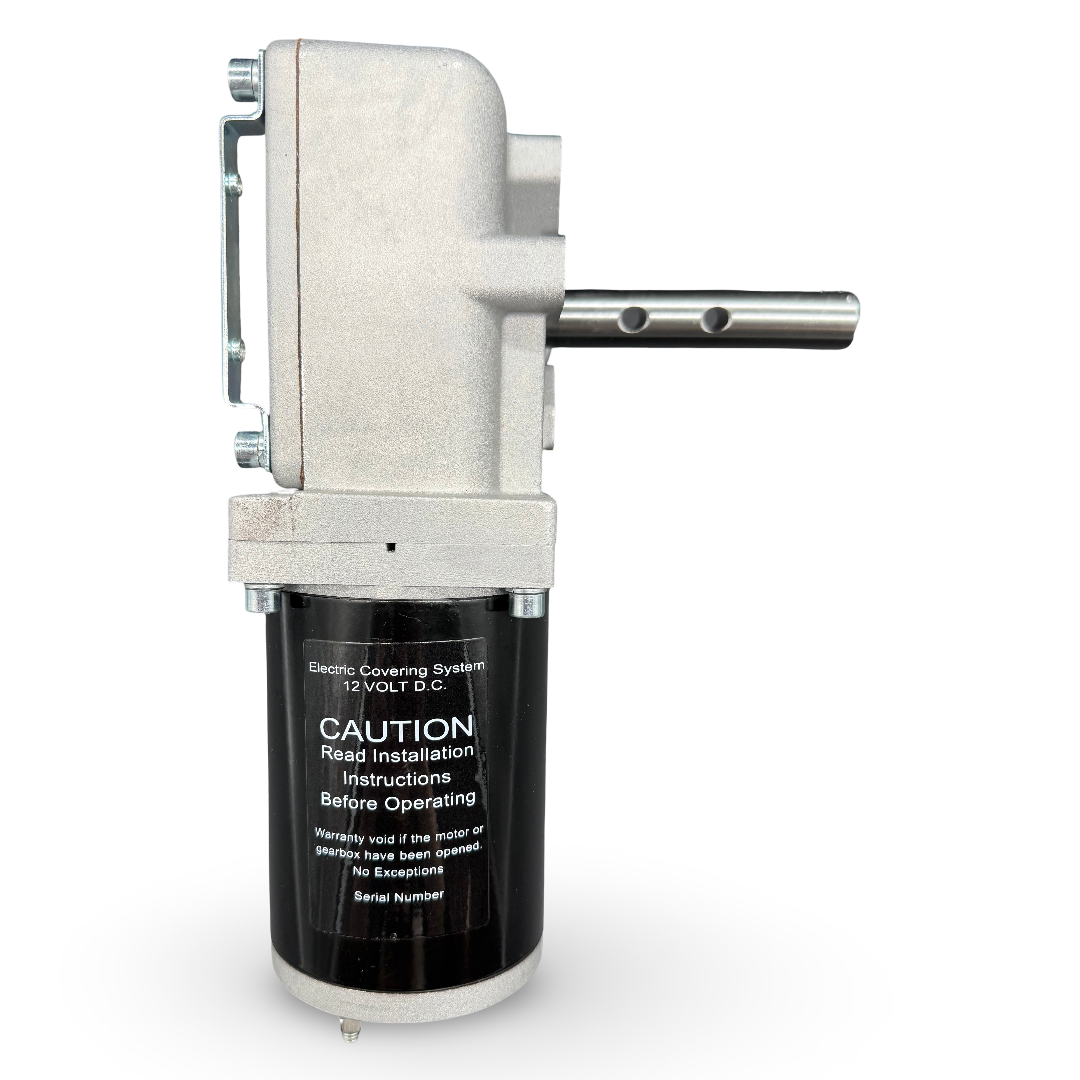

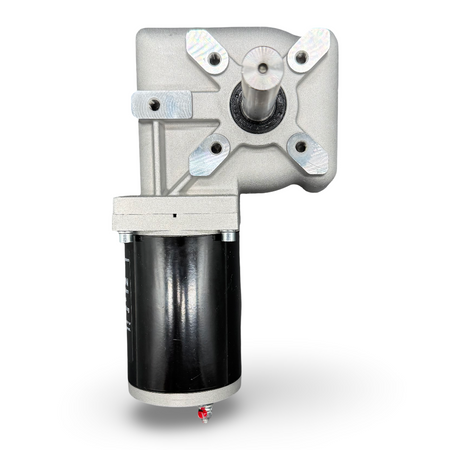

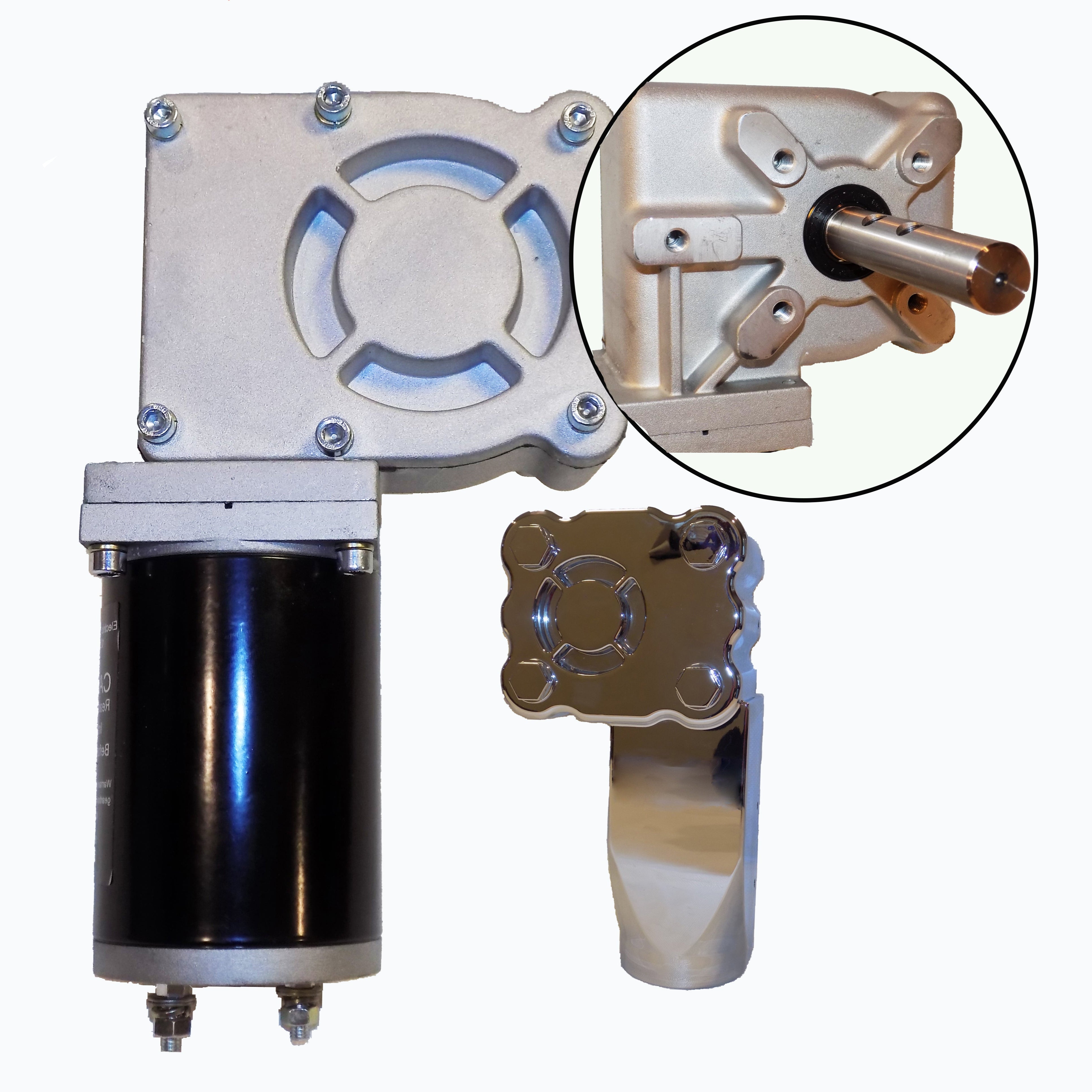

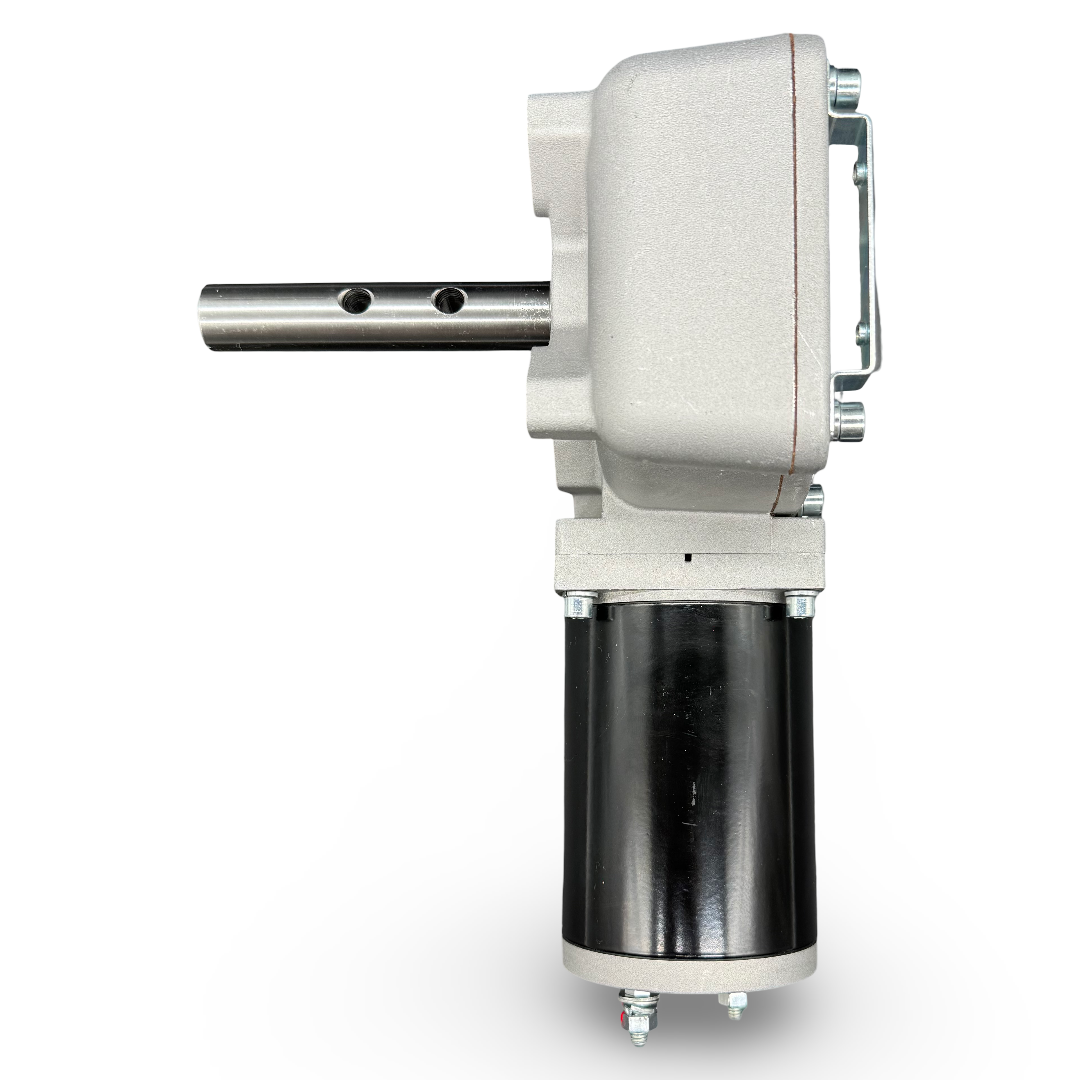

Enforcer Tarp Motor

Power your tarp system with the Enforcer Tarp Motor, a 12V direct-drive motor featuring 90:1 gearing and a 3/4-inch output shaft. Designed for compatible dump truck and trailer tarp systems up to 38 feet long, the Enforcer combines 50 Nm of maximum torque with a listed operating speed of 50 RPM.

Its five-hole mounting pattern accommodates compatible replacement installations. Check your existing motor, roller connection, and mounting dimensions before ordering.

Electric Tarp Motor Specifications

• Type: Direct drive

• Voltage: 12V

• Gear ratio: 90:1

• Listed power: 1,200W

• Output shaft: 3/4" diameter × 3-3/4" long

• Shaft holes: Two 5/16" through-holes

• Maximum torque: 50 Nm / 36.9 lb-ft

• Current draw at rated torque: 40 amps

• Speed: 50 RPM

• Gearing: Worm to wheel

• Braking: Inherent

• Dimensions: 12" L × 6.5" W × 4" H

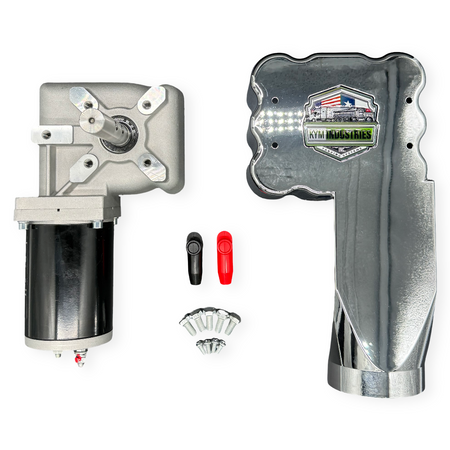

Included Components

Plastic chrome motor cover, three M8 × 16mm socket-head cap screws, five M8 × 16mm hex-head screws, and three rubber washers.

Replacement References

Buyers 5541095, US Tarp 13957, Aero 0755-627005, and Cramaro 164905. Verify fitment against your original motor and tarp system.

Installation and Warranty

Maintain proper roller alignment and use the mounting hardware specified for your installation. Your current listing recommends 6 AWG wire; verify the requirements for your circuit length and load.

Includes a 5-year warranty, subject to applicable terms. Opening, separating, or tampering with the motor or gearbox voids the warranty.
