9 Button Wireless Kit w/ Gen 2 Dual Pump Wires (MAG Charge)

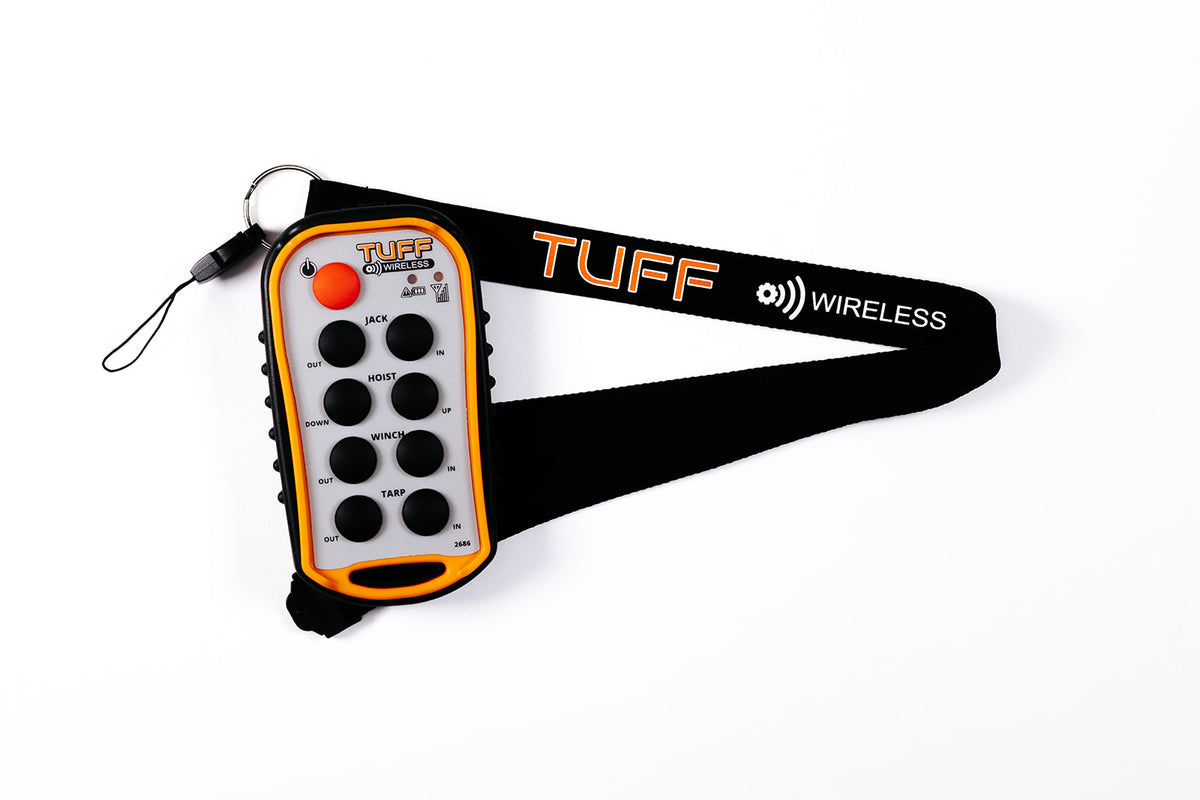

This 9 button wireless system features a larger remote. The perfect match for roll off trailers or that person that just wants more out of a wireless. It is programmed for a 4 function hydraulic pump to operate the jack and hoist. The winch and tarp controls are momentary buttons. This system also boast an extra button to control lights. A relay must be installed in the light circuit. It is only rated for 15 amps.

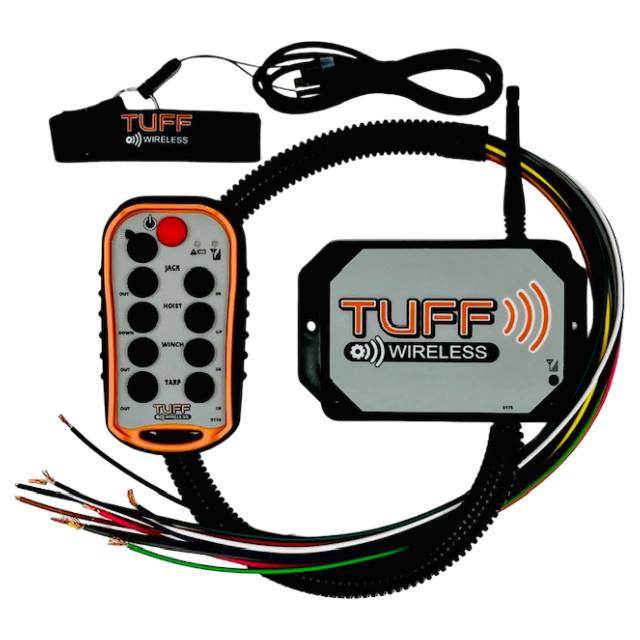

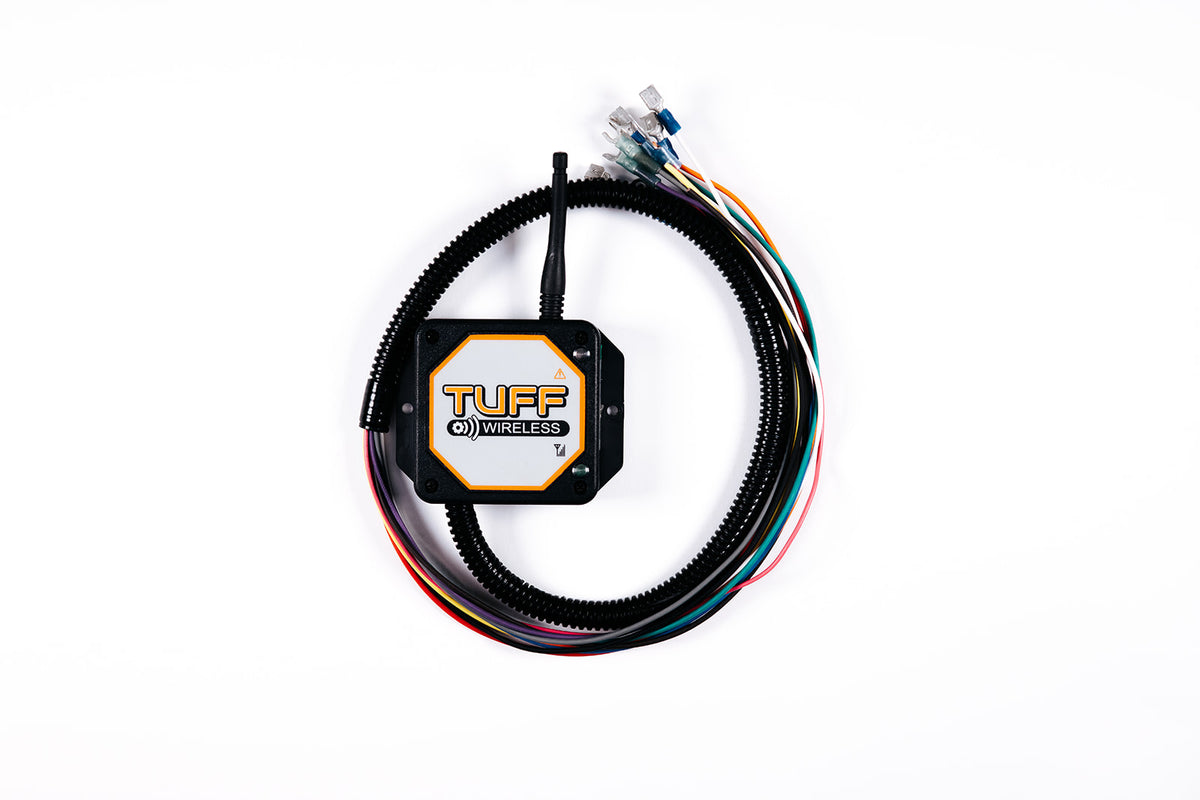

This kit# 3A577AA contains 3A5777A transmitter and 3A5778A receiver.
Be sure to cap off any unused wires to prevent grounding out the unit!
Note: If using for a trailer with hydraulic jacks and telescopic hoist that is all in one pump please be sure to perform a simple “Output Programming” procedure when installing. This would be for like a Diamond C Pacesetter LPT. Units that have this programmable option can be identified by the transmitters green LED staying lit solid for 1 second upon powering up. Any units ordered after June 2024 will have this programming available.
Wiring for the Diamond C LPT
Tuff to Pump, Orange to Green, Yellow to Blue, Green to Red, Blue to Yellow, Tan & Pink to the positive switch side of the solenoid. DO NOT HOOK TO THE GROUND it will cause damage to the Tuff receiver.
