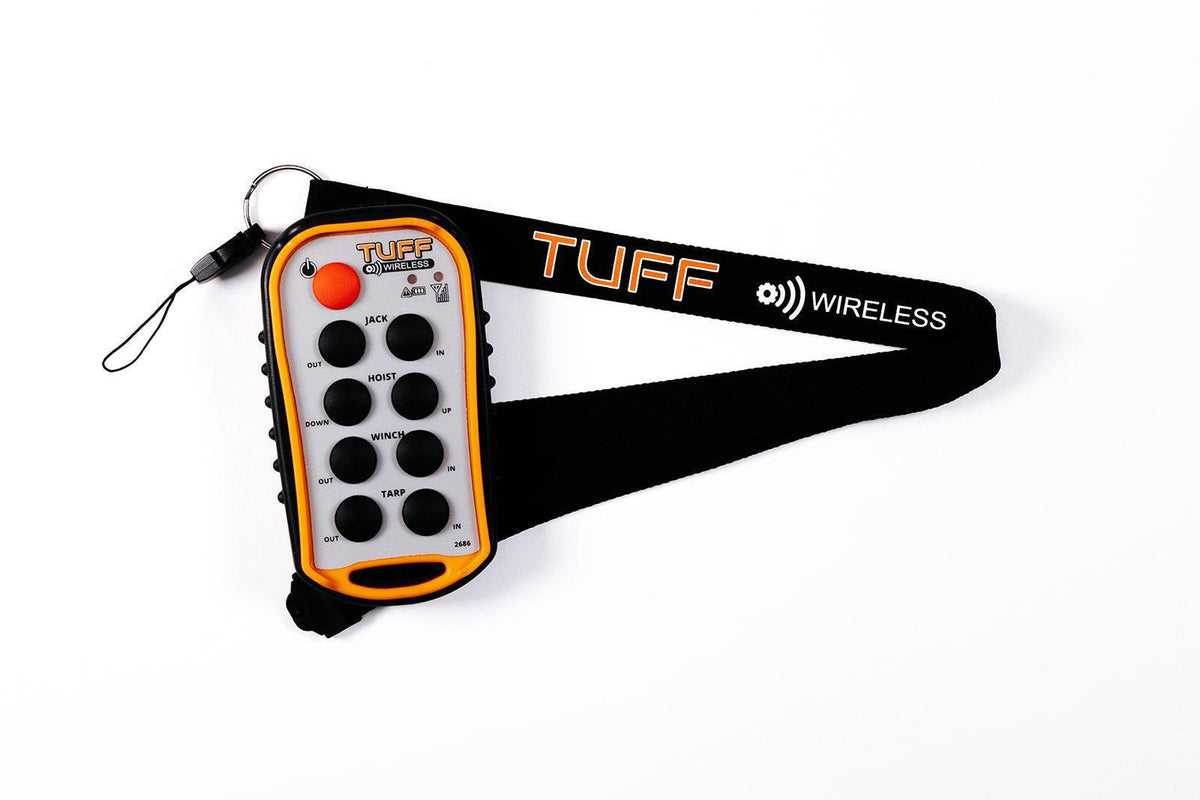

This 8 button wireless system features a larger remote. The perfect match for roll off trailers or that person that just wants more out of a wireless. It is programmed for a 4 function hydraulic pump to operate the jack and hoist. The winch and tarp controls are momentary buttons.

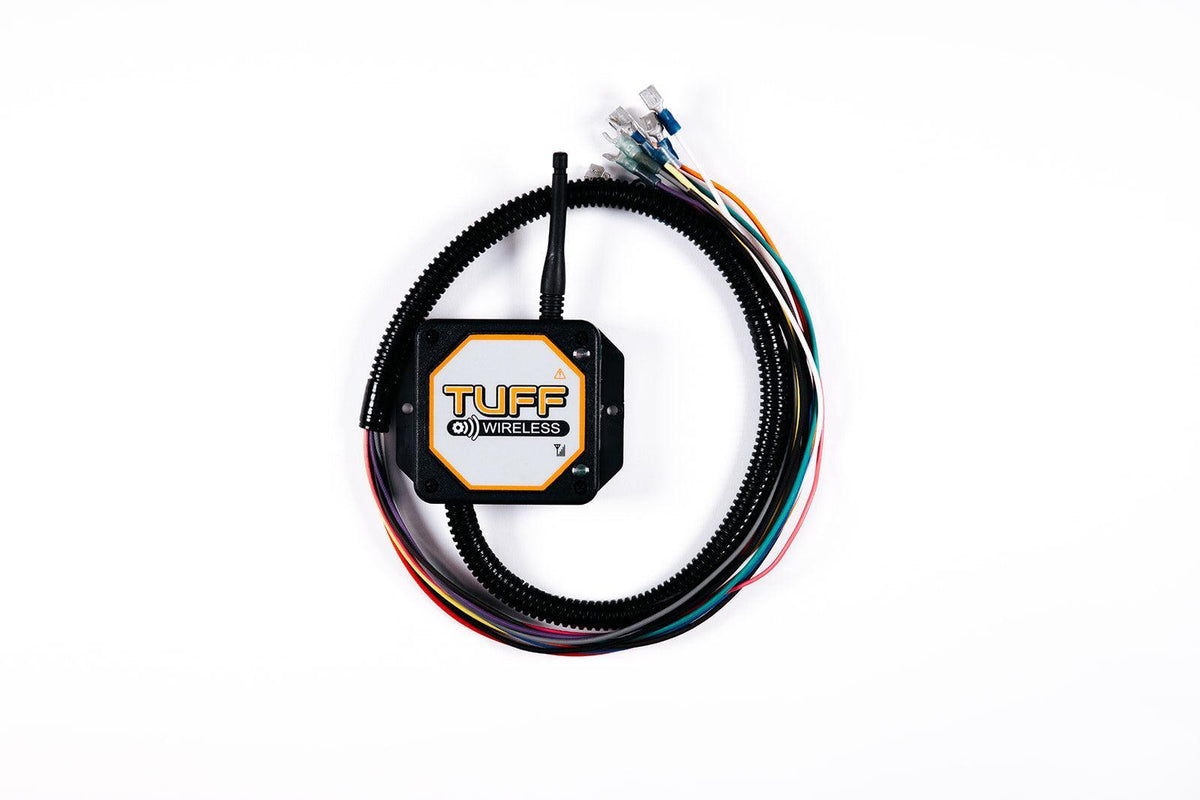

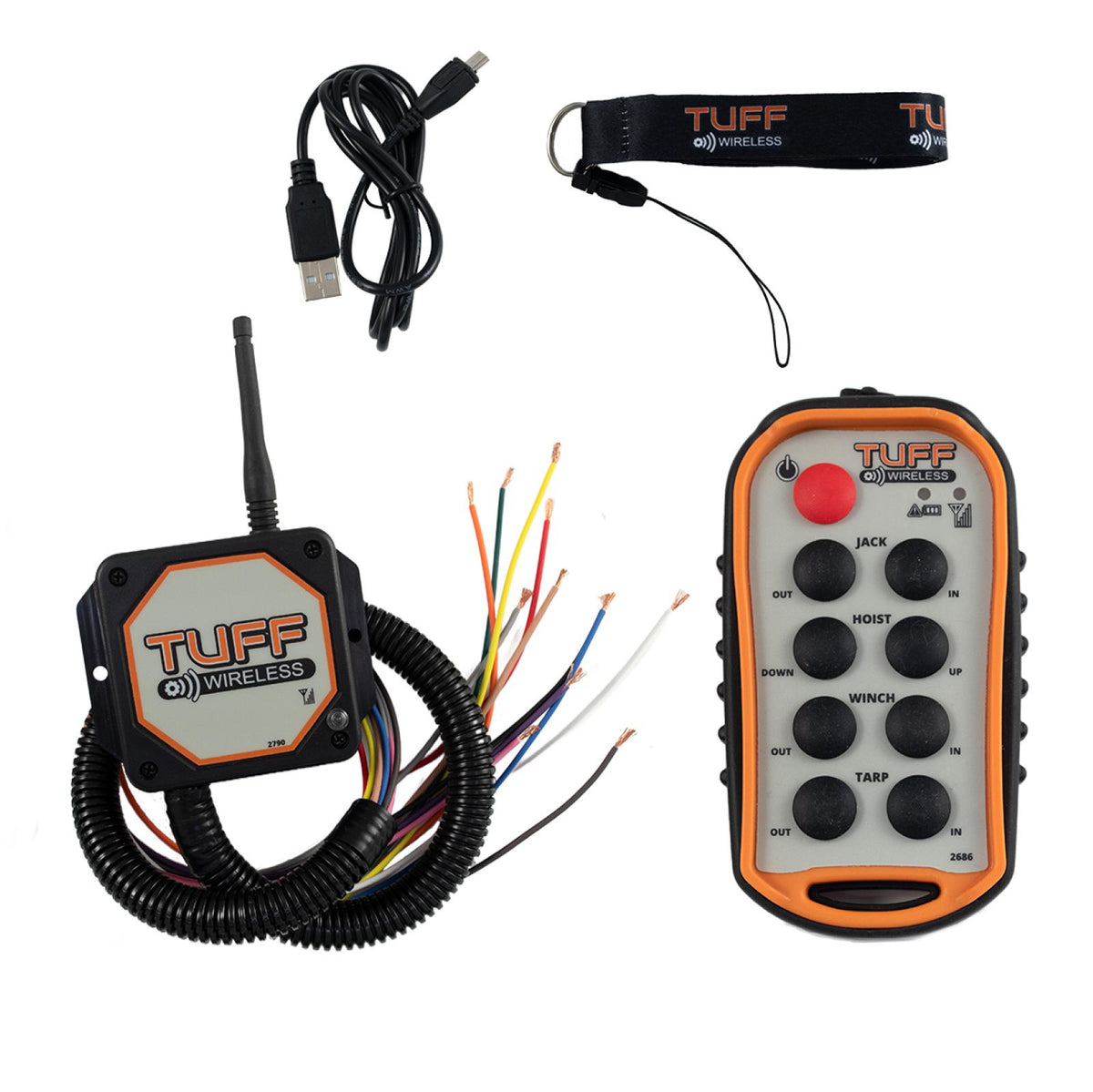

This kit# 3A577TA contains 3A5772A transmitter and 3A577PA receiver.
Be sure to cap off any unused wires to prevent grounding out the unit!
Note: If using for a trailer with hydraulic jacks and telescopic hoist that is all in one pump please be sure to perform a simple “Output Programming” procedure when installing. This would be for like a Diamond C Pacesetter LPT. Units that have this programmable option can be identified by the transmitters green LED staying lit solid for 1 second upon powering up. Any units ordered after June 2024 will have this programming available.
Wiring for the LPT
Tuff to Pump
Orange to Green
Yellow to Blue
Green to Red
Blue to Yellow
Tan & Pink to the positive switch side of the solenoid. DO NOT HOOK TO THE GROUND it will cause damage to the Tuff receiver.
8 BUTTON WIRING SCHEMATIC
