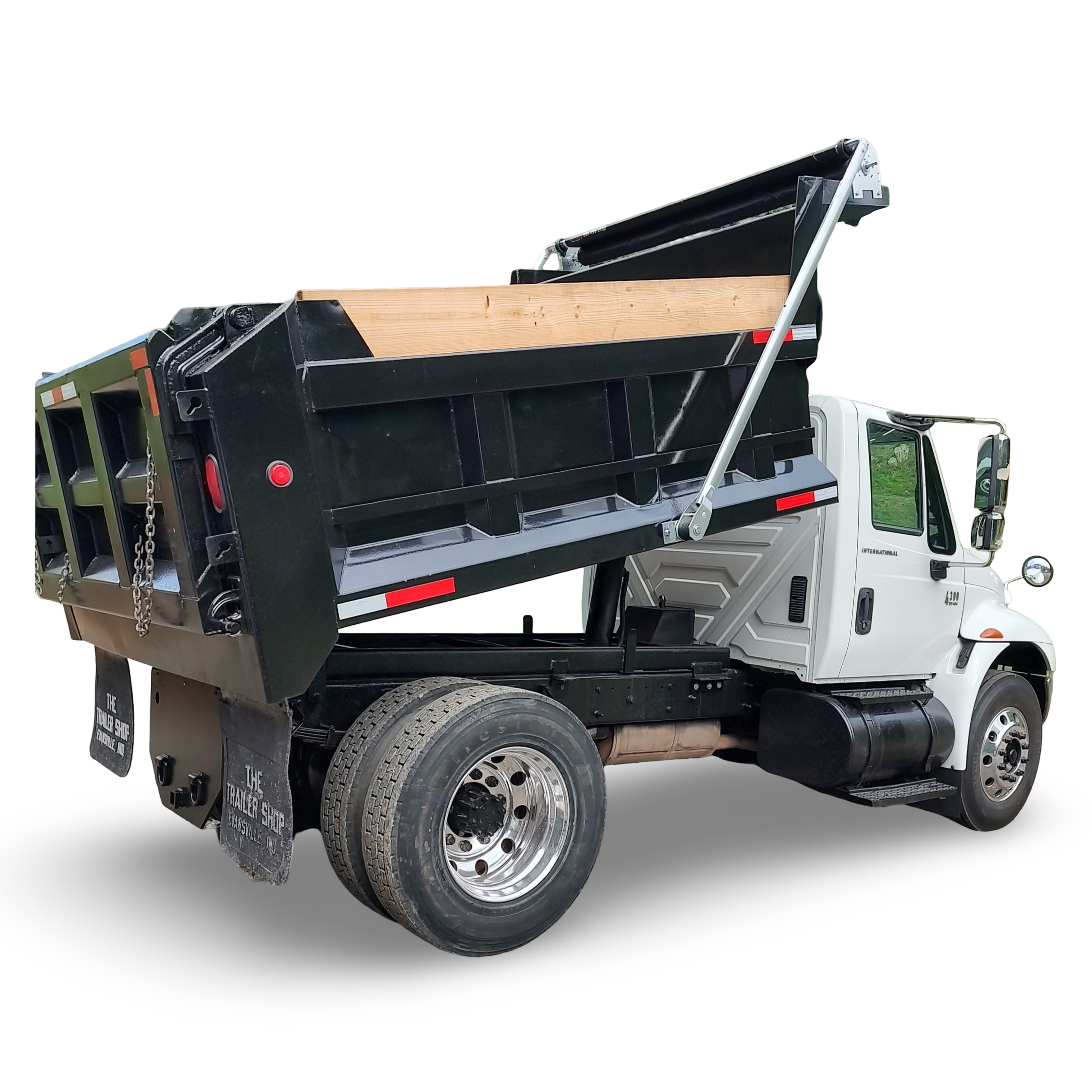

Dump truck with an open bed on a white background with an aluminum electric tarp system installed on it.

Patriot Aluminum Replacement Tarp Arms, Springs, Pins, Bumpers, and all necessary hardware.

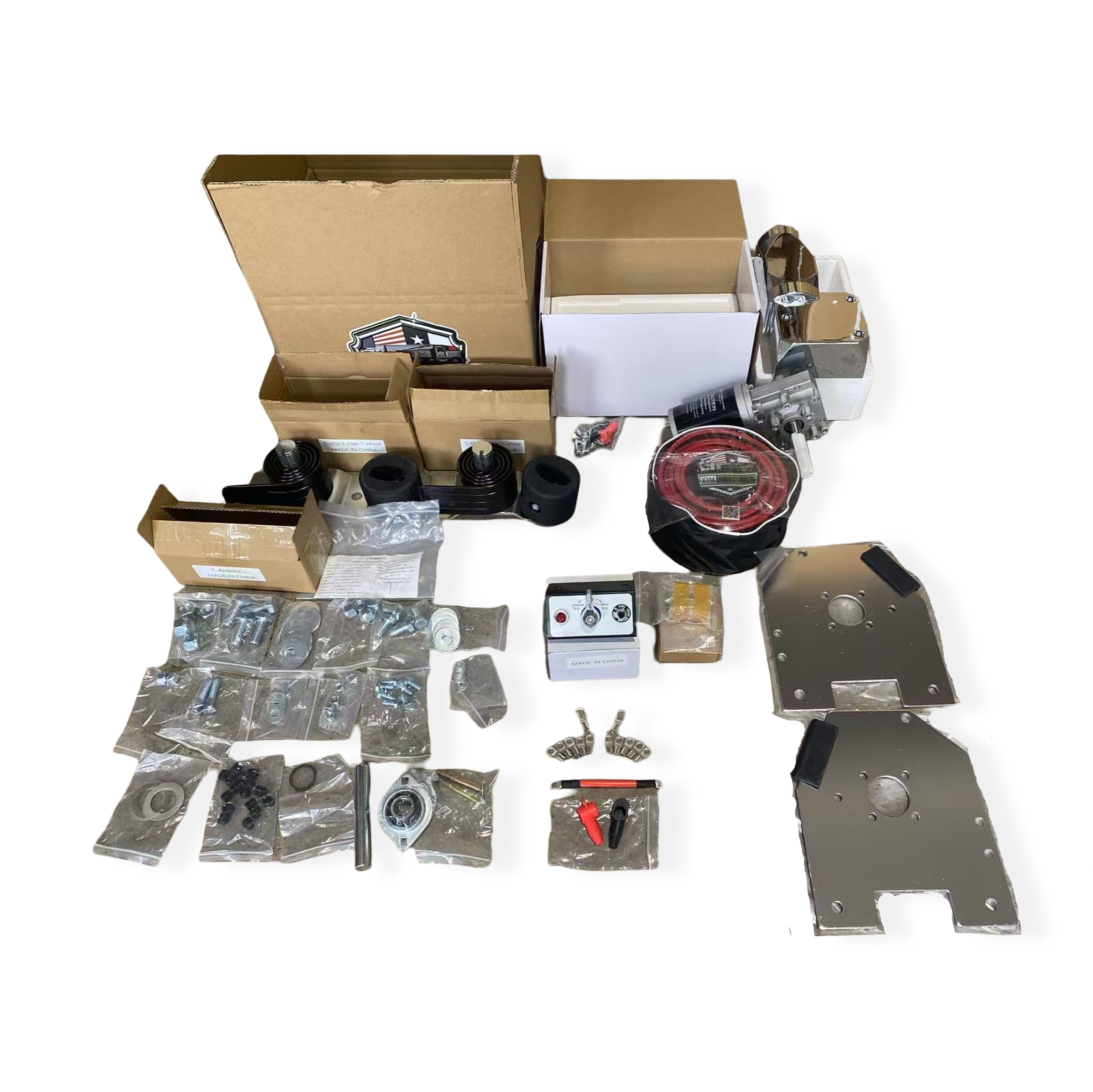

Patriot Aluminum Electric Tarp System Small Box Contents.

A collection of components for an electric tarp system, including a rotary switch, circuit breaker, wiring, and connectors, but excluding the motor.

Patriot Aluminum Electric Tarping System Hardware Kit Contents

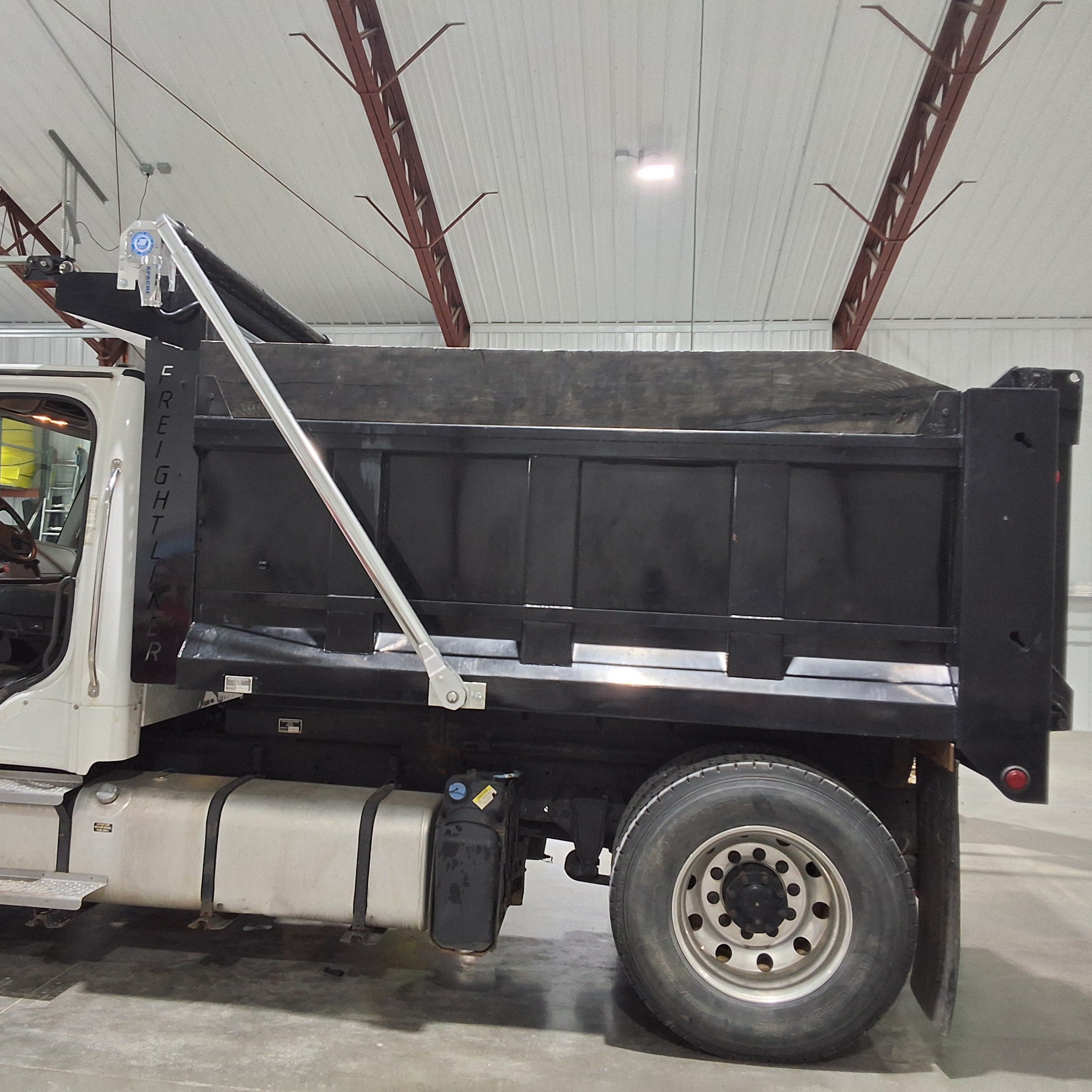

Dealer's customer's freightliner dump truck with a patriot aluminum electric tarping system installed on it.

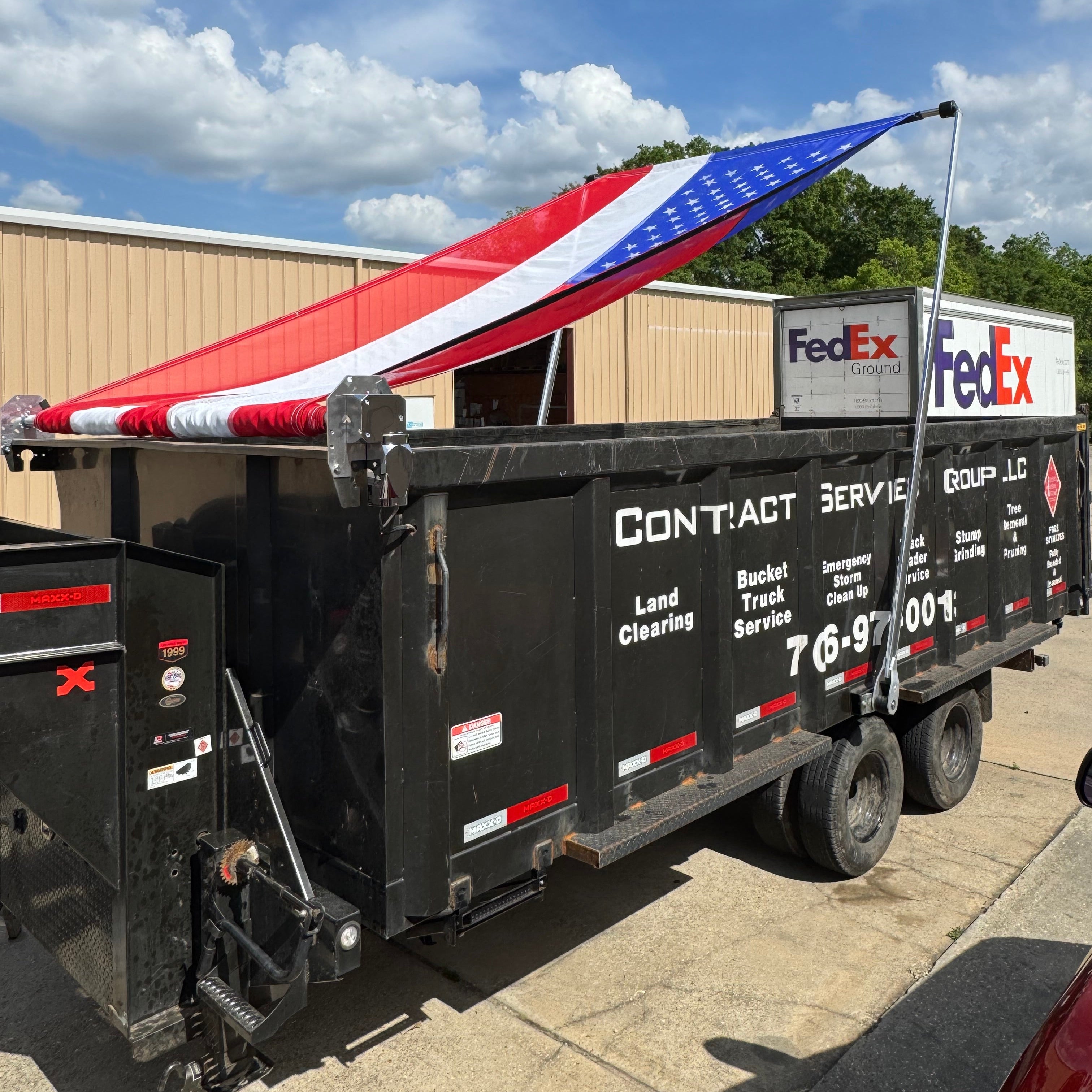

Customer's MAXX-D dump trailer with a Patriot Aluminum Electric Tarping System and 8' x 24' Mesh American Flag Tarp installed on it.

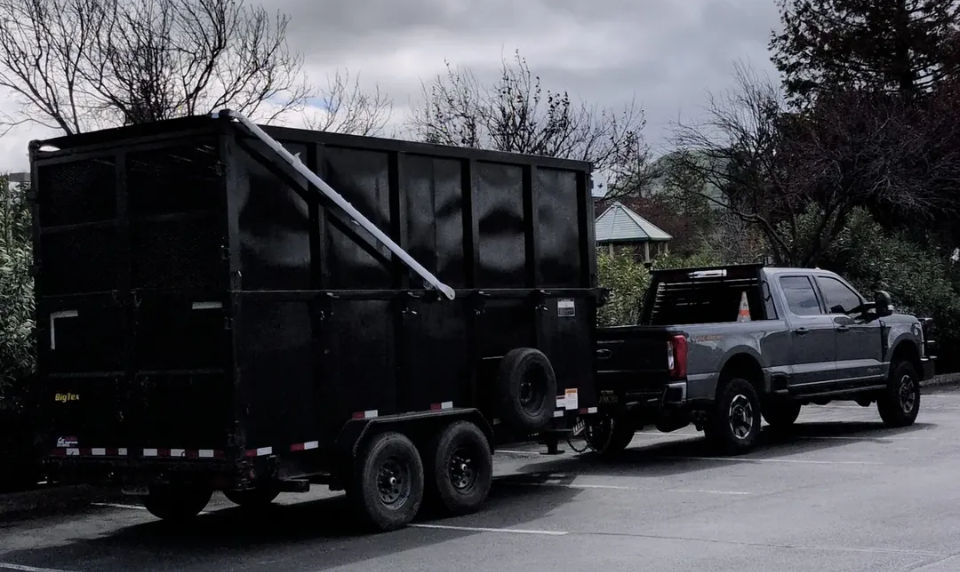

Customer provided photos of a aluminum electric tarping system installed on a modified dump trailer in California.

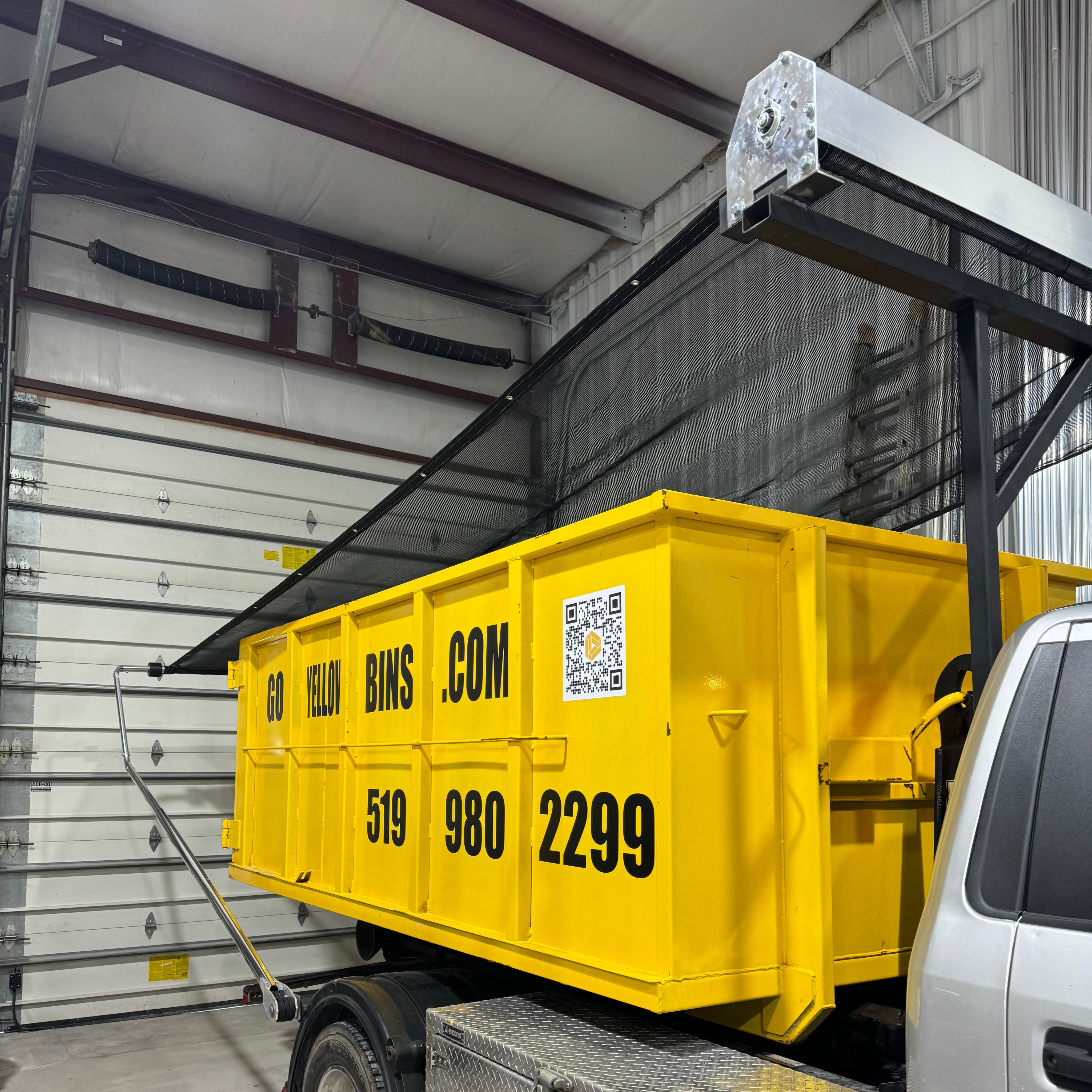

Patriot Aluminum Electric Tarping System installed by a customer with a stationary gantry and tarp arm bends.

Customer supplied video at the landfill of his newly installed patriot aluminum electric tarping system on his Horizon roll-off trailer.

Video of a Mesh American Flag Tarp being deployed on a customer's supplied dump trailer.

4 Spring Aluminum Electric Tarp System

Name: 4 Spring Aluminum Electric Tarp System
Rating: 5.00 (14 reviews)

In stock

Usually ships within 24-72 hours

$899.00 USD

Switch Kit

RSK (standard) RPSS2 (upgraded)

Product details

Vendor Tarping Systems, Inc.
SKU T-PAT-4SP93-A
Type Front-to-Back
Coverage Up to 23' Bed

Do you have any questions about this product?

Ask an expert!

Dump Truck Tarp Systems are a worthy investment for both dump trucks and dump trailers. Electric tarp systems simplify the tarping process, saving you time and money. Please note: This model is designed for dump beds less than 24' long. This is a complete bolt-on kit (no welding required).

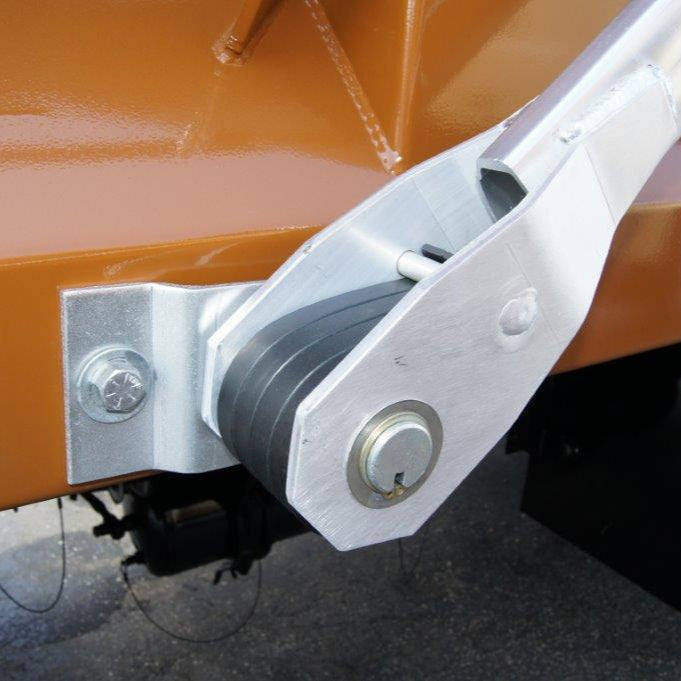

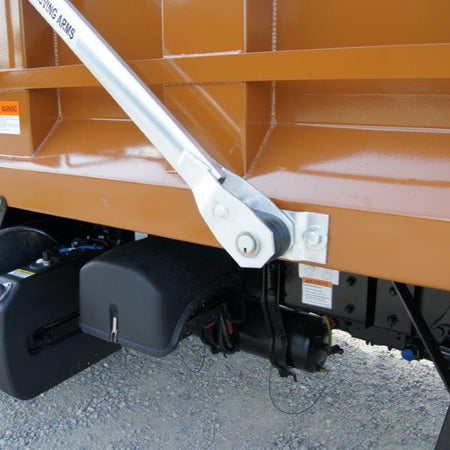

With an electric dump truck tarp system, you can cover and uncover a load in seconds, with the turn of a switch, and from the comfort and safety of the ground or your cab! This tarp system features heavy-duty rustproof aluminum tarp arms that mount to each side of your dump body, with a cross tube connecting the arms over the dump box. Each side has springs that push the arms towards the rear of the dump box. The included Tarp Motor turns the axle, which is mounted behind or above the cab, to spool up the tarp and pull the tarp arms back to the front of the dump body.

An auto tarp kit comes with everything you need for a quick and easy installation. Any of the tarp system hardware can be cut down to fit dump bed lengths from 8' to 24', making it one of the most versatile and economical dump truck tarp systems on the market.

Don't forget a Mesh Dump Truck Tarp or a Vinyl Dump Truck Tarp !

Need this installed? Call us to schedule an install today!

Electric Tarp System Components

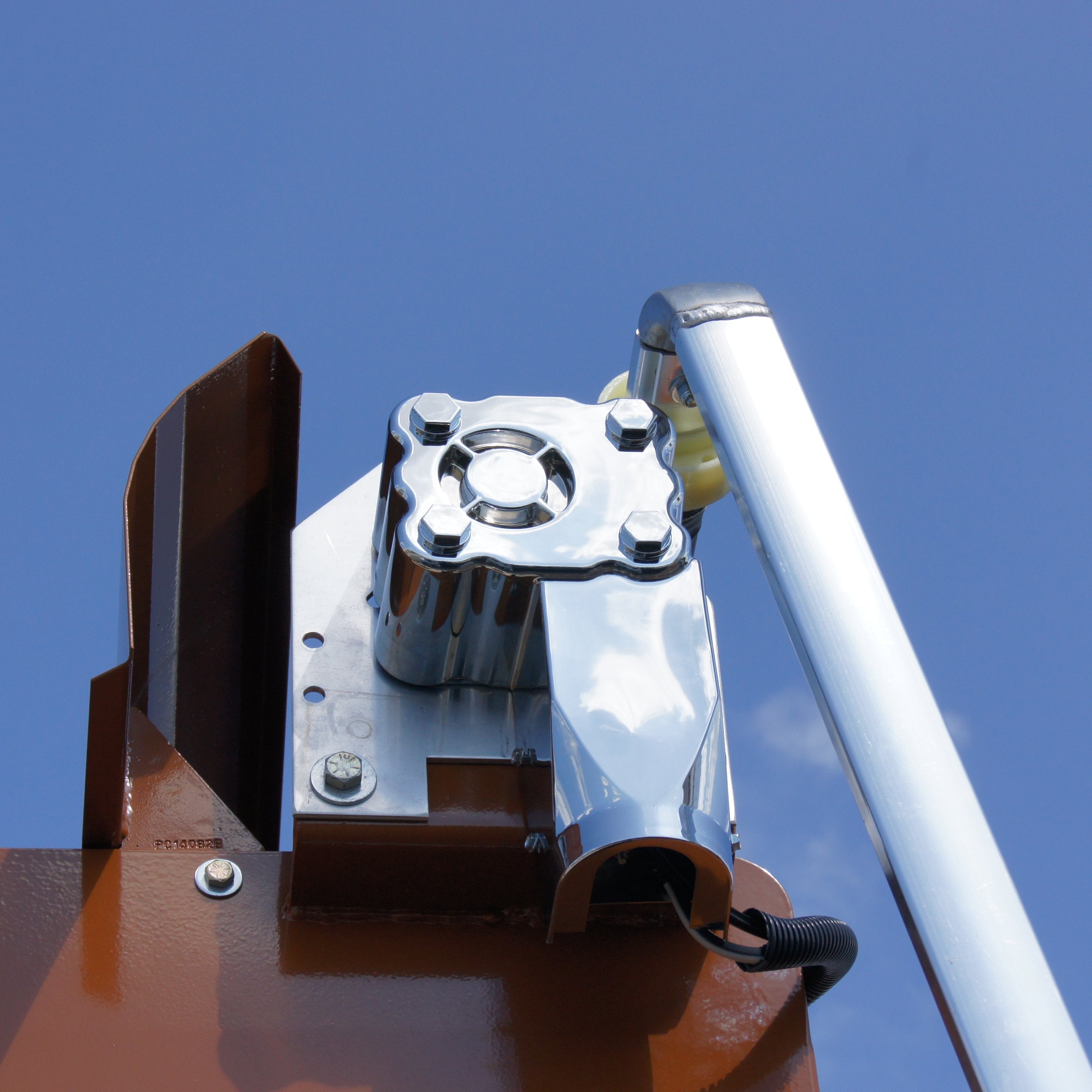

(1) 50:1 Tarp Motor
(1) Rotary Switch Kit
(1) 50' Roll of Dual Conductor 6 Gauge Wire

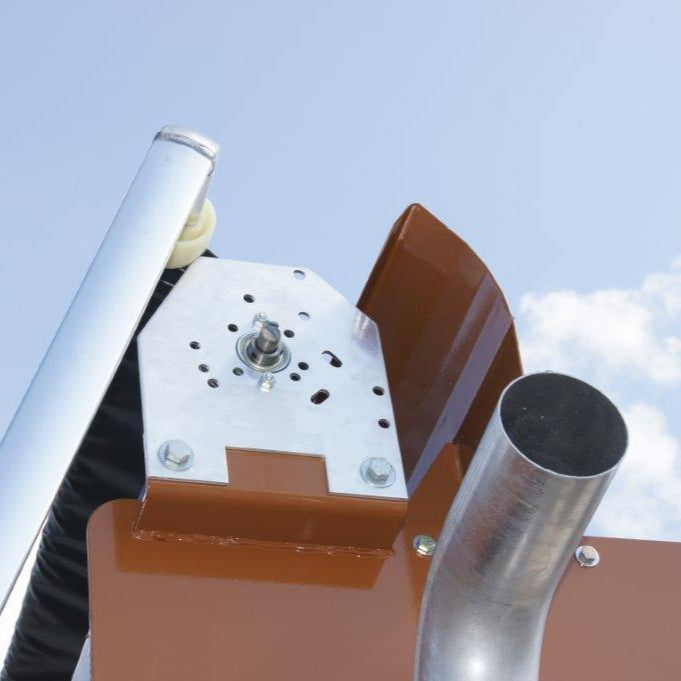

(2) Tarp Spool Mounting Brackets
(1) Adjustable Aluminum Tarp Axle from 93"-110"
(1) Axle Bearing With Flange
(1) Stud Shaft
(2) 4 Spring Pivot Pin
(8) Spiral Torsion Springs
(4) Stainless Steel Bushings
(2) External Retaining Ring Clips
(2) 4 Spring Aluminum Lower Arms
(2) Aluminum Side Arm with 90° Corners
(1) Adjustable Aluminum Cross Tube
(2) Patriot Rubber Bumpers
(1) Patriot Aluminum Hardware Kit (Instructions Included)

NOT INCLUDED: Tarp , Elbows, Wind Deflector , Housing.
